Part Number: KM23C4100DET
Description: The KM23C4100D(E)T is a fully static mask programmable ROM fabricated using silicon gate CMOS process ...
- Table of contents:
KM23C4100DET
-
Suppliers
DataSheet
General Description
KM23C4100DET General Description
The KM23C4100D(E)T is a fully static mask programmable ROM fabricated using silicon gate CMOS process technology, and is organized either as 524,288 x 8 bit(byte mode) or as262,144 x 16 bit(word mode) depending on BHE voltage level.(See mode selection table)
This device operates with a 5V single power supply, and all inputs and outputs are TTL compatible.
Because of its asynchronous operation, it requires no external clock assuring extremely easy operation.
It is suitable for use in program memory of microprocessor, and data memory, character generator.
The KM23C4100D(E)T is packaged in a 44-TSOP2.
KM23C4100DET Maximum Ratings
|
Item |
Symbol |
Rating |
Unit |
Remark |
| Voltage on Any Pin Relative to VSS |
VIN |
-0.3 to +7.0 |
V |
- |
| Temperature Under Bias |
TBIAS |
-10 to +85 |
- | |
| Storage Temperature |
TStg |
-55 to +150 |
- | |
| Operating Temperature |
TA |
0to +70 |
KM23C4100DT | |
|
-20 to +85 |
KM23C4100DET |
KM23C4100DET Features
· Switchable organization
-524,288 x 8(byte mode)
-262,144 x 16(word mode)
· Fast access time : 80ns(Max.)
· Supply voltage : single +5V
· Current consumption
-Operating : 50mA(Max.)
-Standby : 50mA(Max.)
· Fully static operation
· All inputs and outputs TTL compatible
· Three state outputs
· Package
-KM23C4100D(E)T : 44-TSOP2-400
-524,288 x 8(byte mode)
-262,144 x 16(word mode)
· Fast access time : 80ns(Max.)
· Supply voltage : single +5V
· Current consumption
-Operating : 50mA(Max.)
-Standby : 50mA(Max.)
· Fully static operation
· All inputs and outputs TTL compatible
· Three state outputs
· Package
-KM23C4100D(E)T : 44-TSOP2-400

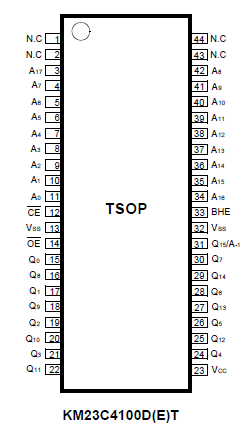

KM23C4100DET Connection Diagram
KM23C4100DET
PDF/DataSheet Download
- Datasheet: KM23C4100DET
- File Size: 74193 KB
- Manufacturer: SAMSUNG [Samsung semiconductor]
- Click here to Download
