Part Number: KM23C64000T
Description: The KM23C64000T is a fully static mask programmable ROM fabricated using silicon gate CMOS process tec...
- Table of contents:
KM23C64000T
-
Suppliers
DataSheet
General Description
KM23C64000T General Description
The KM23C64000T is a fully static mask programmable ROM fabricated using silicon gate CMOS process technology, and is organized either as 8,388,608 x 8 bit(byte mode) or as 4,194,304 x 16 bit(word mode) depending on BHE voltage level.(See mode selection table)
This device operates with a 5V single power supply, and all inputs and outputs are TTL compatible.
Because of its asynchronous operation, it requires no external clock assuring extremely easy operation.
It is suitable for use in program memory of microprocessor, and data memory, character generator.
The KM23C64000T is packaged in a 44-TSOP2.
KM23C64000T Maximum Ratings
|
Item |
Symbol |
Rating |
Unit |
Remark |
| Voltage on Any Pin Relative to VSS |
VIN |
-0.3 to +4.5 |
V |
- |
| Temperature Under Bias |
TBIAS |
-10 to +85 |
- | |
| Storage Temperature |
TSTG |
-55 to +150 |
- |
KM23C64000T Features
· Switchable organization
8,388,608 x 8(byte mode)
4,194,304 x 16(word mode)
· Fast access time : 120ns(Max.)
· Supply voltage : single +5V
· Current consumption
Operating : 70mA(Max.)
Standby : 50mA(Max.)
· Fully static operation
· All inputs and outputs TTL compatible
· Three state outputs
· Package : KM23C64000T : 44-TSOP2-400

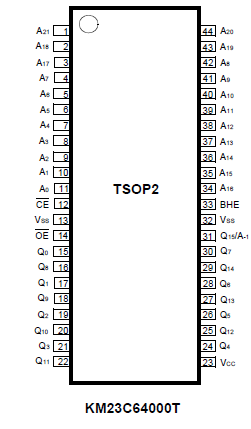

KM23C64000T Connection Diagram
KM23C64000T
