Part Number: KM684000B
Description: The KM684000B families are fabricated by SAMSUNG¢s advanced CMOS process technology. The fa...
- Table of contents:
KM684000B
-
Suppliers
DataSheet
General Description
KM684000B General Description
The KM684000B families are fabricated by SAMSUNG¢s advanced CMOS process technology. The families support various operating temperature ranges and various package types for user flexibility of system design. The family also support low data retention voltage for battery back-up oper-ation with low data retention current.
KM684000B Maximum Ratings
| Item | Symbol | Ratings | Unit | Remark |
| Voltage on any pin relative to Vss | VIN,VOUT | -0.5 to 7.0 | V | - |
| Voltage on Vcc supply relative to Vss | VCC | -0.5 to 7.0 | V | - |
| Power Dissipation | PD | 1.0 | W | - |
| Storage temperature | TSTG | -65 to 150 | - | |
| Operating Temperature | TA | 0 to 70 | KM684000BL/L-L | |
| -40 to 85 | KM684000BLI/LI-L | |||
| Soldering temperature and time | TSOLDER | 260°C, 10sec(Lead Only) | - | - |
1. Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the evice. Functional operation should be restricted to recommended operating condition. Exposure to absolute maximum rating conditions for extended eriods may affect reliability.
KM684000B Features
· Process Technology: TFT
· Organization: 512Kx8
· Power Supply Voltage: 4.5~5.5V
· Low Data Retention Voltage: 2V(Min)
· Three state output and TTL Compatible
· Package Type: 32-DIP-600, 32-SOP-525
32-TSOP2-400F/R
· Organization: 512Kx8
· Power Supply Voltage: 4.5~5.5V
· Low Data Retention Voltage: 2V(Min)
· Three state output and TTL Compatible
· Package Type: 32-DIP-600, 32-SOP-525
32-TSOP2-400F/R

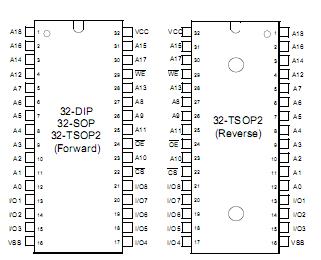

KM684000B Connection Diagram
KM684000BLG-5
PDF/DataSheet Download
- Datasheet: KM684000BLG-5
- File Size: 175379 KB
- Manufacturer: SAMSUNG [Samsung semiconductor]
- Click here to Download
