Product Details

Description



Features:

Memory
• 512 ´ 4-bit RAM
• 4096 ´ 8-bit ROM
27 I/O Pins
• I/O: 15 pins
• Input only: 4 pins
• Output only: 8 pins
Comparator
• Two-channel mode: internal
reference (4-bit resolution)
• One-channel mode: external reference
LCD Controller/Driver
• 40 segments and 8 common
terminals
• 3, 4 and 8 common
selectable
• Internal resistor circuit for
LCD bias
• All dot can be switched on/off
8-Bit Basic Timer
• 4 interval timer functions
8-Bit Timer/Counter
• Programmable 8-bit timer
• External event counter
• Arbitrary clock frequency
output
• External clock signal divider
• Serial I/O interface clock generator
Watch Timer
• Time interval generation:
0.5 s, 3.9 ms at 32768 Hz
• Four frequency outputs to
BUZ pin
• Clock source generation for LCD
8-Bit Serial I/O Interface
• 8-bit transmit/receive mode
• 8-bit receive only mode
• LSB-first or MSB-first
transmission selectable
• Internal or external clock source

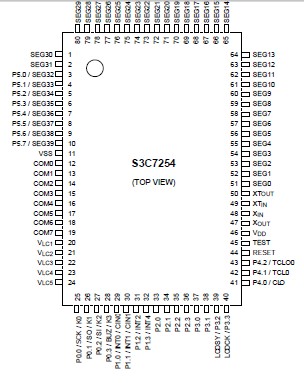

Pinout

Connection Diagram
