General Description
KS57P4304 General Description
The KS57P4304 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the KS57C4304 microcontroller. It has an on-chip OTP ROM instead of masked ROM.
Samsung¢s own serial protocol used for OTP program pin information regarding OTP program can be referred OTP pin description.
The KS57P4304 is fully compatible with the KS57C4104, in function, in D.C. electrical characteristics and in pin configuration. Because of its simple programming requirements, the KS57P4304 is ideal for use as an evaluation chip for the KS57C4304.
KS57P4304 Features
Memory
• 256 ´ 4-bit RAM
• 4,096 ´ 8-bit ROM
35 I/O Pins
• I/O: 31 pins including 8 LED direct drive pins
(KS57C4104/C4304)
18 pins including 8 LED direct drive pins
(KS57C4204)
• Input only: 4 pins
A/D Converter
• 6-channel with 8-bit resolution
• 22.89 s conversion speed at 4.19 MHz
Basic Timer
• One 8-bit basic timer
• Watchdog timer functions
• Four interval clock selection
Timer/Counters
• Two 8-bit timer/counter (TC0, TC1)
• Programmable 8-bit timer
• External event counter
• Arbitrary clock frequency output
• PWM output mode (TC1)
Watch Timer
• One watch timer 8-bit
• Time interval generation: 0.5 s, 3.9 ms at
4.19 MHz
• Four frequency outputs to BUZ pin
8-bit Serial I/O Interface
• 8-bit transmit/receive mode
• 8-bit receive mode
• LSB-first or MSB-first transmission selectable
• Internal or external clock source
Built-in reset circuit (KS57C4304 only)
• Built-in power-on reset circuit
Interrupts
• Five internal vectored interrupts
(INTB, INTT0, INTT1, INTS, INTAD)
• Three external vectored interrupts
(INT0, INT1, INT4)
• Two quasi-interrupts (INT2, INTW)
Bit Sequential Carrier
• Supports 16-bit serial data transfer in
arbitrary format
Memory-Mapped I/O Structure
• Data memory bank 15
Two Power-Down Modes
• Idle mode (only CPU clock stops)
• Stop mode (system oscillation stops)
Oscillation Sources
• Crystal, Ceramic, or RC for system clock
• Crystal, Ceramic: 0.46.0 MHz
• RC: 4 MHz (typ)
• CPU clock divider circuit (by 4, 8, or 64)
Instruction Execution Times
• 0.95, 1.91, 15.3 s at 4.19 MHz
• 0.67, 1.33, 10.7 s at 6.0 MHz
Operating Temperature
• 40 °C to 85 °C
Operating Voltage Range
• 1.8 V to 5.5 V (KS57C4104/C4204)
• 2.5 V to 5.5 V (KS57C4304)
Package Type
• 42-pin SDIP, 44-pin QFP (KS57C4104/C4304)
30-pin SDIP, 28-pin SOP (KS57C4204)
• 256 ´ 4-bit RAM
• 4,096 ´ 8-bit ROM
35 I/O Pins
• I/O: 31 pins including 8 LED direct drive pins
(KS57C4104/C4304)
18 pins including 8 LED direct drive pins
(KS57C4204)
• Input only: 4 pins
A/D Converter
• 6-channel with 8-bit resolution
• 22.89 s conversion speed at 4.19 MHz
Basic Timer
• One 8-bit basic timer
• Watchdog timer functions
• Four interval clock selection
Timer/Counters
• Two 8-bit timer/counter (TC0, TC1)
• Programmable 8-bit timer
• External event counter
• Arbitrary clock frequency output
• PWM output mode (TC1)
Watch Timer
• One watch timer 8-bit
• Time interval generation: 0.5 s, 3.9 ms at
4.19 MHz
• Four frequency outputs to BUZ pin
8-bit Serial I/O Interface
• 8-bit transmit/receive mode
• 8-bit receive mode
• LSB-first or MSB-first transmission selectable
• Internal or external clock source
Built-in reset circuit (KS57C4304 only)
• Built-in power-on reset circuit
Interrupts
• Five internal vectored interrupts
(INTB, INTT0, INTT1, INTS, INTAD)
• Three external vectored interrupts
(INT0, INT1, INT4)
• Two quasi-interrupts (INT2, INTW)
Bit Sequential Carrier
• Supports 16-bit serial data transfer in
arbitrary format
Memory-Mapped I/O Structure
• Data memory bank 15
Two Power-Down Modes
• Idle mode (only CPU clock stops)
• Stop mode (system oscillation stops)
Oscillation Sources
• Crystal, Ceramic, or RC for system clock
• Crystal, Ceramic: 0.46.0 MHz
• RC: 4 MHz (typ)
• CPU clock divider circuit (by 4, 8, or 64)
Instruction Execution Times
• 0.95, 1.91, 15.3 s at 4.19 MHz
• 0.67, 1.33, 10.7 s at 6.0 MHz
Operating Temperature
• 40 °C to 85 °C
Operating Voltage Range
• 1.8 V to 5.5 V (KS57C4104/C4204)
• 2.5 V to 5.5 V (KS57C4304)
Package Type
• 42-pin SDIP, 44-pin QFP (KS57C4104/C4304)
30-pin SDIP, 28-pin SOP (KS57C4204)

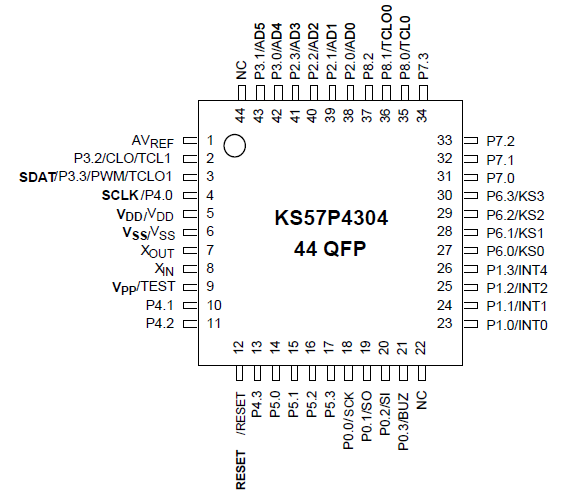

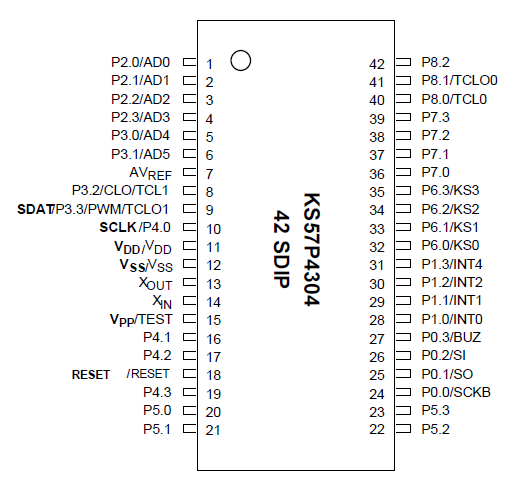

KS57P4304 Connection Diagram
