General Description
L4953 General Description
The L4953 contains a triple voltage regulator and a power switch.
The IC includes a monitoring circuit to warn if a low voltage or no voltage condition is occuring.
In stand-by output is active as long as possible even when in thermal shutdown or any other fault conditions. The STCAP pin allows the use of a reserve supply capacitor that will hold enough energy for the 5V Stand-by line to allow the mP to store data.
L4953 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VSDC | DC Operating Supply Voltage | 14 to 28 | V |
| VSTR | Transient Supply Voltage | 50 | V |
| IO | Output Current | internally limited | |
| TOP | Operating Temperature Range | 40 to 85 | °C |
| TSTG | Storage Temperature | 55 to 150 | °C |

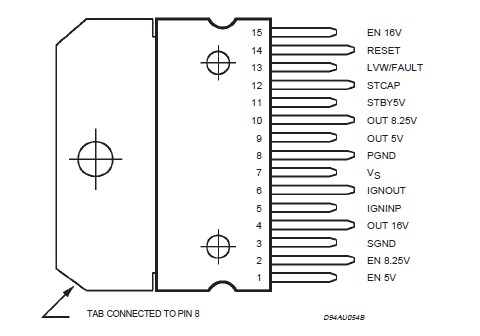

L4953 Connection Diagram
L4953
