L6235

PinoutSpecifications Symbol Parameter Test conditions Value Unit VS Supply Voltage VSA = VSB = VS 60 V VOD Differential Voltage between:VSA, OUT1, OUT2, SENSEAand VSB, OUT3, SENSEB VSA = VSB = VS = 60V;VSENSEA = VSENSEB = GND 60 V VBOOT Boot...

product image

L6235 Picture
See larger image
SeekIC No. : 004389251 Detail

L6235: PinoutSpecifications Symbol Parameter Test conditions Value Unit VS Supply Voltage VSA = VSB = VS 60 V VOD Differential Voltage between:VSA, OUT1, OUT2, SEN...

L6235 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6235
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

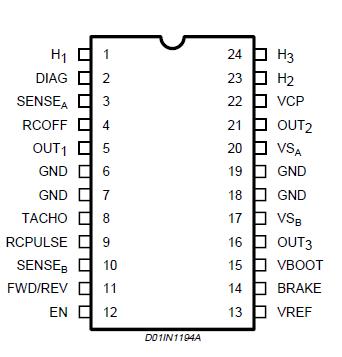

Connection Diagram


Specifications

Symbol
Parameter
Test conditions
Value
Unit
VS
 Supply Voltage
VSA = VSB = VS
60
V
VOD
 Differential Voltage between:
VSA, OUT1, OUT2, SENSEA
and VSB, OUT3, SENSEB
VSA = VSB = VS = 60V;
VSENSEA = VSENSEB = GND
60
V
VBOOT
 Bootstrap Peak Voltage
VSA = VSB = VS
V
VIN, VEN
 Logic Inputs Voltage Range
0.3 to 7
V
VREF
 Voltage Range at pin VREF
0.3 to 7
V
VRCOFF
 Voltage Range at pin RCOFF
0.3 to 7
V
VRCPULSE
 Voltage Range at pin RCPULSE
0.3 to 7
V
VSENSE
 Voltage Range at pins SENSEA
and SENSEB
-1 to 4
V
IS(peak)
 Pulsed Supply Current (for each
VSA and VSB pin)
VSA = VSB = VS; TPULSE < 1ms
7.1
A
IS
 DC Supply Current (for each
VSA and VSB pin)
VSA = VSB = VS
2.8
A
Tstg, TOP
 Storage and Operating
Temperature Range
-40 to 150
°C



Description

The L6235 is a DMOS Fully Integrated Three-Phase Motor Driver with Overcurrent Protection.

Realized in MultiPower-BCD technology, the device  combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip.

The L6235 includes all the circuitry needed to drive a three-phase BLDC motor including: a three-phase DMOS Bridge, a constant off time PWM Current Controller and the decoding logic for single ended hall sensors that generates the required sequence for the power stage.

Available in PowerDIP24 (20+2+2), PowerSO36 and SO24 (20+2+2) packages, the L6235 features a nondissipative  overcurrent protection on the high side Power MOSFETs and thermal shutdown
