L6565D

Switching Frequency :
Duty Cycle (Max) :
Rise Time :
Fall Time :
Operating Supply Voltage :
Operating Supply Current :
Number of Outputs :
Maximum Operating Temperature :
Mounting Style : SMD/SMT
Package / Case : SO-8


Features:

` QUASI-RESONANT (QR) ZERO-VOLTAGESWITCHING (ZVS) TOPOLOGY
` LINE FEED FORWARD TO DELIVER CONSTANT POWER vs. MAINS CHANGE
` FREQUENCY FOLDBACK FOR OPTIMUM STANDBY EFFICIENCY
` PULSE-BY-PULSE & HICCUP-MODE OCP
` ULTRA-LOW START-UP (< 70A) AND QUIESCENT CURRENT (< 3.5mA)
` DISABLE FUNCTION (ON/OFF CONTROL)
` 1% PRECISION (@ T<sub>j</sub> = 25°C) INTERNAL REFERENCE VOLTAGE
` ±400mA TOTEM POLE GATE DRIVER WITH UVLO PULL-DOWN
` BLUE ANGEL, ENERGY STAR, ENERGY 2000 COMPLIANT



Application

· TV/MONITOR SMPS
· AC-DC ADAPTERS/CHARGERS
· DIGITAL CONSUMER
· PRINTERS, FAX MACHINES, PHOTOCOPIERS AND SCANNERS

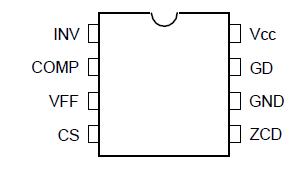

Pinout




Specifications

Symbol	Pin	Parameter	Value	Unit
IVcc	8	ICC + IZ	30	mA
IGD	7	Output Totem Pole Peak Current (2 s)	±700	mA
INV, COMP, VFF, CS	1, 2, 3 4	Analog Inputs & Outputs	-0.3 to 7	V
IZCD	5	Zero Current Detector	50 (source) -10 (sink)	mA
Ptot		Power Dissipation @Tamb = 50 °C (Minidip) (SO8)	1 0.65	W
Tj		Junction Temperature Operating range	-40 to 150	°C
Tstg		Storage Temperature	-55 to 150	°C

Description

The L6565 is a current-mode primary controller IC, specifically designed to build offline Quasi-resonant ZVS (Zero Voltage Switching at switch turn-on) flyback converters.

Quasi-resonant operation is achieved by means of a transformer demagnetization sensing input that triggers MOSFET's turn-on.

Parameters:

Technical/Catalog Information	L6565D
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Packaging	*
Package / Case	*
Power (Watts)	650mW
Voltage - Input	10.3 ~ 18 V
Voltage - Output	-
Frequency Range	-
Operating Temperature	-40°C ~ 150°C
Output Isolation	Isolated
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L6565D L6565D
