L9338D

Rise Time :
Fall Time :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Product : Half-Bridge Drivers
Supply Voltage - Min : 4.5 V
Packaging : Tube
Supply Current : 2 mA
Maximum Operating Temperature : + 150 C
Type : Inverting
Package / Case : SO-20
Supply Voltage - Max : 32 V


Features:

`WIDE INPUT VOLTAGE RANGE FROM -24V UP TO +45V
`WIDE OPERATING SUPPLY VOLTAGE RANGE FROM 4.5V UP TO 32V
`REVERSE BIASINGPROTECTED (V<sub>S</sub> = -24V)
`VERY LOW STANDBY QUIESCENT CURRENT < 2A
`PROGRAMMABLE SIGNAL TRANSFER POLARITY
`TTL AND CMOS COMPATIBLE INPUTS
`DEFINED OUTPUT OFF STATE OFF FOR OPEN INPUTS
`FOUR OPEN DRAIN DMOS OUTPUTS, WITH R_DSon = 1.5 at 25°C and VS > 6V
`OUTPUT CURRENT LIMITATION
`CONTROLLEDOUTPUTSLOPEFORLOWEMI
`OVERTEMPERATURESHUT-DOWN
`INTEGRATED OUTPUT CLAMPING FOR FASTINDUCTIVE RECIRCULATION V_FB > 45V
`STATUS MONITORING FOR
   - OVERTEMPERATURE
   - DISCONNECTED GROUND OR SUPPLY VOLTAGE
`ESD: ALL PINS ARE GUARANTEED TILL 2kV HUMAN BODYMODEL

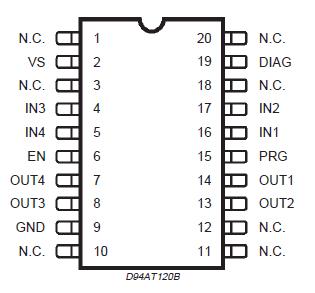

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply voltage	-24 to 45	V
Pin voltages
VIN	Input, enable, program	-24 to 45	V
VOUT	Output	-0.3 to 45	V
VDIAG	Output	-0.3 to 45	V

Description

The L9338D is a monolithic integrated quad low side driver realized in advanced Multipower-BCD technology. L9338D is intended to drive lines, lamps or relais in automotive or industrial applications.

Parameters:

Technical/Catalog Information	L9338D
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	20-SOIC (7.5mm Width)
Mounting Type	Surface Mount
Type	Low Side
Voltage - Supply	4.5 V ~ 32 V
On-State Resistance	1.7 Ohm
Current - Output / Channel	-
Current - Peak Output	700mA
Packaging	Tube
Input Type	Inverting
Number of Outputs	4
Operating Temperature	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L9338D L9338D
