Description: The L9638 is a monolithic integrated circuit for LIN-bus interface function between the protocol handl...


Urgent Purchase

L9638D General Description


The L9638 is a monolithic integrated circuit for LIN-bus interface function between the protocol handler in the controller and the physical bus in automotive applications.

As well as it can be used in standard ISO 9141 systems.

L9638D Maximum Ratings

Symbol Parameter Value Unit
VS Supply Voltage -0.3 to 40 V
VLIM Pin Voltage -24 to 40 V
VINH ,WUP Pin Voltage -0.3 to 40 V
VRxD ,TxD, EN Pin Voltage -0.3 to 6 V
VESD HBM: all pins withstand ±2KV; pin 6 (LIN) is able to withstand
±8kV versus GND and +8/-5kV versus VS

L9638D Features

` Single-wire transceiver for LIN-protocol
` Transmission rate up to 20 kbaud
` Operating power supply voltage range 6V Vs 26V (40V for transients)
` Low quiescent current in sleep mode (typ.10A)
` Wake-up through LIN-bus, Enable input (from C CMOS compatible) or Wake-up input (edge driven)
` Wide input and output range -24V VLIN Vs
` Integrated pull/down/up resistors for LIN, TxD, RxD, EN, INH
` Inhibit output with low resistance (<40) versus Vs and short circuit protection
` CMOS compatible TxD, RxD Interface
` EMI robustness optimised
` Thermal shutdown and LIN short circuit protection

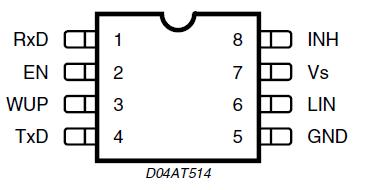

L9638D Connection Diagram
