Part Number: L9703



MFG: ST

Package Cooled: SMD-20



Description: The L9703isa bipolarmonolithic integratedcircuit for monitoring the status of up to eight contacts con...


Urgent Purchase

L9703 General Description


The L9703isa bipolarmonolithic integratedcircuit for monitoring the status of up to eight contacts connected to GND.

It contains eight contact senseinputs and eight microcomputer compatible three-state outputs.

L9703 Maximum Ratings

Symbol Parameter Test Conditions Unit
VS Transient Supply Voltage (t 1s) +40 V
VCC Logic Supply Voltage 7 V
IIN DC Input DC Current ±40 mA
IINP Input DC Pulse
(test pulse specification: 0 < tP < 2ms, f 0.2Hz, n = 25000)		 50
-75		 mA
mA
IO Output Current Internally Limited
VEN Enable Input Voltage VCC +0.3
-0.3		 V
V
PO Power Dissipation at Tamb = 80°C
                                              DIP20
                                              SO20		 875
420		 mW
mW
Tstg,TJ Storage and Junction Temperature Range -55 to 150 °C

L9703 Features

`OPERATING DC SUPPLY VOLTAGE RANGE 5V TO 25V
`SUPPLY OVERVOLTAGEPULSE UP TO 40V
`VERY LOW STANDBY QUIESCENT CUR RENT 0.2mA
`INTERNAL CLAMPING DIODES AT CONTACT INPUTS TO VS AND GND
`INPUT PULSE CURRENT CAPABILITY UP TO + 50mA ; 75mA
`NOMINAL CONTACT CURRENT OF 10mADEFINED BY EXTERNAL CONTACT SERIES RE. SISTORS RI N18
`CONTACT STATUS MONITORING BY COMPARING THE RESISTANCE AT CONTACT SENSEINPUTSWITHTHEINTERNALREFER. ENCE RESISTOR VALUE
`HIGHIMMUNITY DUE TORESISTANCE COMPARISONWITH HYSTERESIS

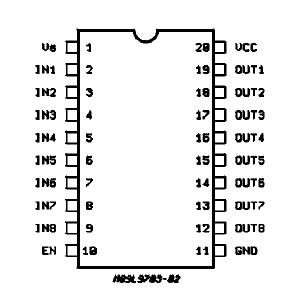

L9703 Connection Diagram

L9703 Connection Diagram

L9703 datasheet
