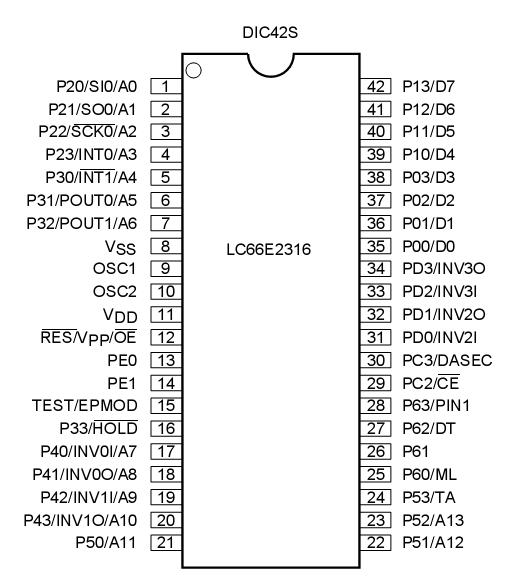

LC66E2316

Parameter

Symbol

Conditions

Ratings

Unit

Note

Maximum supply voltage

V_{DD max}

V_DD

0.3 to +7.0

V

Input voltage

V_IN ¹

P2, P3 (except for the P33/HOLD  pin),
P61, and P63

0.3 to +12.0

V

1

V_IN ²

All other inputs

0.3 to V_DD + 0.3

V

2

Output voltage

V_OUT ¹

P2, P3 (except for the P33/HOLD  pin),
P61, and P63

0.3 to +12.0

V

1

V_OUT ²

All other inputs

0.3 to V_DD + 0.3

V

2

Output current per pin

I_ON¹

P0, P1, P2, P3 (except for the P33/HOLD  pin),
P4, P5, P6, PC

20

mA

3

I_ON²

P41, P43, PC3, PD1, PD3

20

mA

3

I_OP ¹

P0, P1, P4, P5

2

mA

4

I_OP ²

P2, P3 (except for the P33/HOLD pin), P6,and PC

4

mA

4

Total pin current

I_ON¹

P0, P1, P2, P3 (except for the P33/HOLD  pin), PD

75

mA

3

I_ON²

P4, P5, P6, PC

75

mA

3

I_OP¹

P0, P1, P2, P3 (except for the P33/HOLD  pin), PD

25

mA

4

I_OP²

P4, P5, P6, PC

25

mA

4

Allowable power dissipation

P_{d max}

Ta = +10 to +40°C: DIC42S (QFC48)

600 (430)

mW

5

Operating temperature

T_opr

30 to +70

°C

Storage temperature

T_stg

55 to +125

°C
