Purchase LC74793jm, In-stock LC74793jm From SeekIC.
- Table of contents:
LC74793jm
-
Suppliers
DataSheet
General Description
LC74793jm Maximum Ratings
| Parameter | Symbol | Conditions | Ratings | Unit |
| Supply voltage | Supply voltage VDD | VDD1 and VDD2 | VSS 0.3 to VSS + 7.0 | V |
| Input voltage | VIN | All input pins | VSS 0.3 to VDD1 + 0.3 | V |
| Output voltage | VOUT | SDA, SYNCJDG, SEPOUT, DAV, HOUT, and VOUT | VSS 0.3 to VDD1 + 0.3 | V |
| Allowable power dissipation | Allowable power dissipation Pd max | Ta = 25°C | 350 | mW |
| Operating temperature | Topr | 30 to +70 | °C | |
| Storage temperature | Tstg | 30 to +70 | °C |
LC74793jm Features
• VPS data acquisition (5 or 11 to 15 bytes) VPS: Video Program System
• PDC (8/30/2) data acquisition (13 to 25 bytes) PDC: Program Delivery Control
• UDT (8/30/1) data acquisition (13 to 25 bytes) UDT: Unified Date and Time
• Header (X/00) data acquisition (14 to 45 bytes)
• Status display (8/30/1, 8/30/2) data acquisition (26 to 45 bytes)
• Automatic VPS/PDC discrimination mode
• Built-in AFC and sync separator circuits
• Synchronization discrimination circuit
• I2C bus support
• PDC (8/30/2) data acquisition (13 to 25 bytes) PDC: Program Delivery Control
• UDT (8/30/1) data acquisition (13 to 25 bytes) UDT: Unified Date and Time
• Header (X/00) data acquisition (14 to 45 bytes)
• Status display (8/30/1, 8/30/2) data acquisition (26 to 45 bytes)
• Automatic VPS/PDC discrimination mode
• Built-in AFC and sync separator circuits
• Synchronization discrimination circuit
• I2C bus support

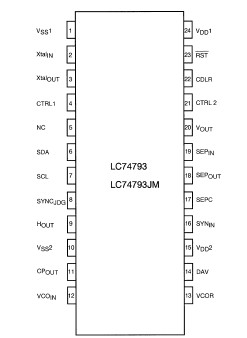

LC74793jm Connection Diagram
LC74793JM
PDF/DataSheet Download
- Datasheet: LC74793JM
- File Size: 157840 KB
- Manufacturer: SANYO [Sanyo Semicon Device]
- Click here to Download
