LC78631E

Features: • VCEC support• Built-in PLL circuit for EFM detection (supports 4*playback)• Built-in PLL for variable pitch playback (±13%)• 18KB RAM on chip• Error detection and correction (corrects two errors in C1 and four errors in C2)• Frame jitter margin: ±8 f...

product image

LC78631E Picture
See larger image
SeekIC No. : 004392191 Detail

LC78631E: Features: • VCEC support• Built-in PLL circuit for EFM detection (supports 4*playback)• Built-in PLL for variable pitch playback (±13%)• 18KB RAM on chip• Error detecti...

LC78631E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC78631E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• VCEC support
• Built-in PLL circuit for EFM detection (supports 4*playback)
• Built-in PLL for variable pitch playback (±13%)
• 18KB RAM on chip
• Error detection and correction (corrects two errors in C1 and four errors in C2)
• Frame jitter margin: ±8 frames
• Frame synchronization signal detection, protection, and insertion
• Dual interpolation adopted in the interpolation circuit.
• EFM data demodulation
• Subcode demodulation
• Zero-cross muting adopted
• Servo command interface
• 2fs digital filter
• Digital de-emphasis
• Built-in independent left- and right-channel digital attenuators (239 attenuation steps)
• Supports the bilingual function
• Left/right swap function
• Built-in 1-bit D/A converter (third-order noise shaper, PWM output)
• Built-in digital output circuit
• CLV servo
• Arbitrary track jumping (of up to 255 tracks)
• Variable sled voltage (four levels)
• Six extended I/O ports and 2 extended output ports
• Built-in oscillator circuit using an external 16.9344 MHz or 33.8688 MHz (for 4*playback) element
• Supply voltage: 3.6 to 5.5 V (4.75 to 5.5 V for 4* playback mode)


Pinout

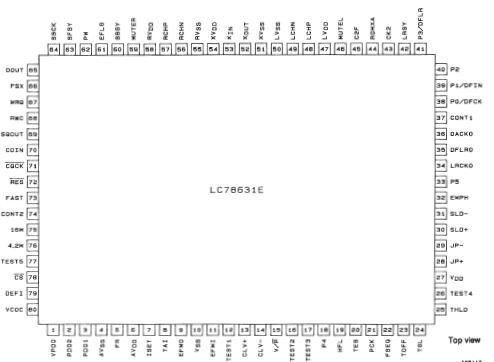

Connection Diagram


Specifications

Parameter Symbol Conditions
Ratings
Unit
Maximum supply voltage VDDmax
0.3 to + 7.0
V
Input voltage VIN
0.3 to VDD + 0.3
V
Output voltage VOUT
0.3 to VDD + 0.3
V
Allowable power dissipation Pdmax

470
mW
Operating temperature Topr
30 to +75
Storage temperature Tstg
40 to +125



Description

The LC78631E is a compact disc D/A signal-processing LSI for CD-ROM drives that provides a variable clock error correction (VCEC) mode. The LC78631E demodulates the EFM signal from the optical pickup and performs de-interleaving, error detection, error correction, digital filtering, and other processing. The LC78631E includes an on-chip 1-bit D/A converter, and executes commands sent from a control microprocessor.
