Part Number: LC78681E
Description: The LC78681E is a CMOS LSI providing digital signal processing (DSP) and servo control for compact dis...
- Table of contents:
LC78681E
-
Suppliers
DataSheet
General Description
LC78681E General Description
The LC78681E is a CMOS LSI providing digital signal processing (DSP) and servo control for compact disc players and other audio devices, including laser disc players and equipment using compact disc video (CD-V) and compact disc interactive (CD-I) formats. Functions include the demodulation of EFM (eight-tofourteen modulation) signals from optical pickups, deinterleaving, detection and correction of error signals, and signal processing for digital filters as well as other features that can help reduce player cost. The LC78681E also processes commands from the microprocessor for the servo system. Direct interface is also possible with the Sanyo LC7883K and LC78835, which are serial input D/A converters with on-chip digital filters.
LC78681E Maximum Ratings
|
Parameter |
Symbol |
Conditions |
Ratings |
Unit |
|
Maximum supply voltage |
VDD max |
VSS 0.3 to 7 |
V | |
|
Maximum input voltage |
VINmax |
VSS 0.3 to VDD + 0.3 |
V | |
|
Maximum output voltage |
VOUTmax |
VSS 0.3 to VDD + 0.3 |
V | |
|
Allowable power dissipation |
Pd max |
300 |
mW | |
|
Operating temperature |
Topr |
30 to +75 |
°C | |
|
Storage temperature |
Tstg |
40 to +125 |
°C |
LC78681E Features
• Compact and space-saving 64-pin QFP package
• Silicon-gate CMOS design (low power dissipation)
• Single 5 V power supply (suitable for portable sets)
• DEMO pin for improved operability in adjustment
• Silicon-gate CMOS design (low power dissipation)
• Single 5 V power supply (suitable for portable sets)
• DEMO pin for improved operability in adjustment

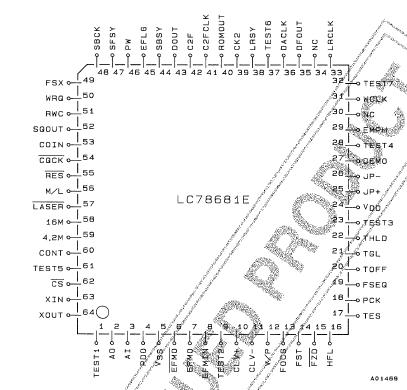

LC78681E Connection Diagram
LC78681E
