Part Number: LC7871E
Description: The LC7871E and LC7871NE are CMOS LSIs that integrate the signal processing functions required for&nbs...
- Table of contents:
LC7871E
-
Suppliers
DataSheet
General Description
LC7871E General Description
The LC7871E and LC7871NE are CMOS LSIs that integrate the signal processing functions required for compact disk extended graphics (CD-EG) decoding in a single chip. These products accept the R to W subcode signals output by CDP-DSP products such as the LC7860KA, LC7867E, LC7868E, LC7869E, or LC78681E, and perform de-interleaving, error detection and correction, graphics instruction processing, and image processing.
LC7871E Maximum Ratings
| Parameter | Symbol |
Ratings |
Unit | |
| Maximum supply voltage | VDDmax |
VSS 0.3 to +7.0 |
V | |
| Maximum input voltage | VIN max |
VSS 0.3 to VDD + 0.3 |
V | |
| Maximum output voltage | VOUT max |
VSS 0.3 to VDD + 0.3 |
V | |
| Allowable power dissipation | Pdmax |
500 |
mW | |
| Operating temperature | Topr |
30 to +85 |
||
| Storage temperature | Tstg |
40 to +125 |
||
LC7871E Features
• A CD-G decoder can be constructed from only two chips, since no controller is required.
• A CD-EG decoder can be constructed with the addition of two 256-kbit DRAMs since no controller is required.
• Silicon gate CMOS process for low power dissipation
• 5 V single voltage power supply
• A CD-EG decoder can be constructed with the addition of two 256-kbit DRAMs since no controller is required.
• Silicon gate CMOS process for low power dissipation
• 5 V single voltage power supply

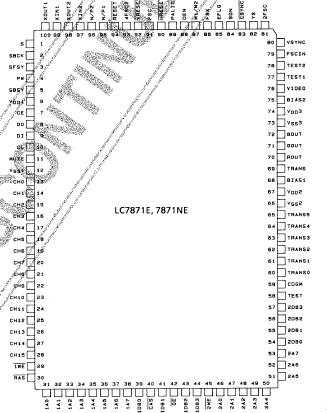

LC7871E Connection Diagram
LC7871E
PDF/DataSheet Download
- Datasheet: LC7871E
- File Size: 284236 KB
- Manufacturer: Sanyo
- Click here to Download
