LC7874E

Features: • A CD-G decoder can be configured using a three-chip combination of this LSI-the LC7874E-with external RAM (64K * 4 bits) and an LC78010E digital RGB encoder.• Performs insertion and protection of CD subcode R to W sync signals and detection of R to W signal deinterleave err...

product image

LC7874E Picture
See larger image
SeekIC No. : 004392203 Detail

LC7874E: Features: • A CD-G decoder can be configured using a three-chip combination of this LSI-the LC7874E-with external RAM (64K * 4 bits) and an LC78010E digital RGB encoder.• Performs insert...

LC7874E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC7874E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• A CD-G decoder can be configured using a three-chip combination of this LSI-the LC7874E-with external RAM (64K * 4 bits) and an LC78010E digital RGB encoder.
• Performs insertion and protection of CD subcode R to W sync signals and detection of R to W signal deinterleave error signals.
• Has two crystal oscillators, for NTSC and PAL, with simple switchover by means of a control pin.
  Connecting a crystal resonator of 14.31818 MHz for NTSC and 17.734476 MHz for PAL enables the standard clock and other necessary timings to be generated internally.
• Performs CD graphics instruction processing and drawing functions, and controls image display.
• Has microcomputer interface functions, allowing set upgrading.
• Provides superimposition support.
• Has a color bar signal output function.
• DRAM interface and RGB output and sync signal output are 3-state outputs.


Pinout

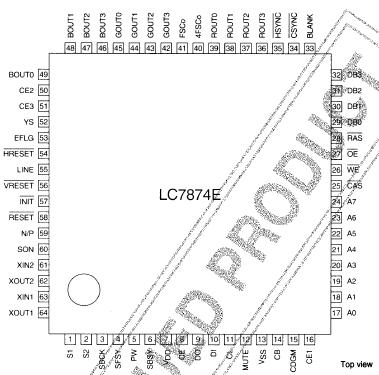

Connection Diagram


Description

The LC7874E is a CMOS LSI that provides the signal processing needed for compact disc graphics (CD-G) on a single chip. The LC7874E accepts subcode R to W signals output from a CD player DSP LC786X Series,LC7862XE Series, or LC7863XE Series device, and performs de-interleaving, error detection and correction,graphic instruction processing, and image processing.
