LC8901

Features: • On-chip PLL circuit synchronizes with the transmitted IEC958, EIAJ CP-1201 format signal.• Provides 20-bit LSB first and 16-bit MSB first audio data output functions.• Microprocessor interface for mode settings and code output• System clock can be selected to be...

product image

LC8901 Picture
See larger image
SeekIC No. : 004392625 Detail

LC8901: Features: • On-chip PLL circuit synchronizes with the transmitted IEC958, EIAJ CP-1201 format signal.• Provides 20-bit LSB first and 16-bit MSB first audio data output functions.• ...

LC8901 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC8901
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• On-chip PLL circuit synchronizes with the transmitted IEC958, EIAJ CP-1201 format signal.
• Provides 20-bit LSB first and 16-bit MSB first audio data output functions.
• Microprocessor interface for mode settings and code output
• System clock can be selected to be either 384fs or 512fs.
• Provides both a digital source mode and an analog source mode.
• Fabricated in a Si-gate CMOS process.
• 5 V single-voltage power supply


Pinout

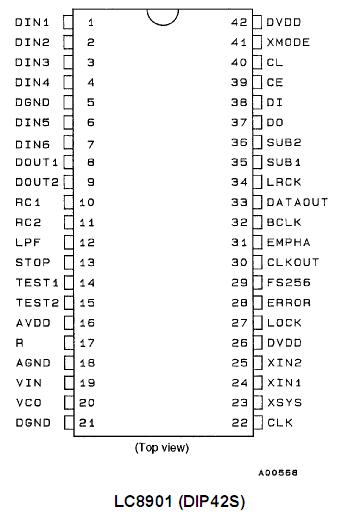

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VDD max 0.3 to +7.0 V
Maximum input voltage VIN max 0.3 to VDD + 0.3 V
Maximum output voltage VOUT max 0.3 to VDD + 0.3 V
Operating temperature Topr 30 to +75
Storage temperature Tstg 55 to +125



Description

The LC8901 and LC8901Q are LSIs for use in IEC958, EIAJ CP-1201 format data transmission between digital audio equipment. These LSIs are used on the receiving side, and handle synchronization with the input signal and demodulation of that signal to a normal format signal.
