LC89051V

Features: • On-chip PLL circuit synchronizes with the transmitted IEC958 format signal.• Low-voltage operation (3.3 V)• Provides 128fs, bit, and L/R clock outputs.• System clock can be selected to be either 384fs or 512fs.• Microcontroller interface code settings for ...

product image

LC89051V Picture
See larger image
SeekIC No. : 004392630 Detail

LC89051V: Features: • On-chip PLL circuit synchronizes with the transmitted IEC958 format signal.• Low-voltage operation (3.3 V)• Provides 128fs, bit, and L/R clock outputs.• System cl...

LC89051V Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC89051V
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• On-chip PLL circuit synchronizes with the transmitted IEC958 format signal.
• Low-voltage operation (3.3 V)
• Provides 128fs, bit, and L/R clock outputs.
• System clock can be selected to be either 384fs or 512fs.
• Microcontroller interface code settings for different output types
  - Input pin, emphasis output, input bi-phase data output, and validity flag output settings
  - Audio data output format setting
  - Channel status output (32-bit output for consumer products)
  - Subcode Q output with CRC flags (80 bits)
  - Start ID and shortening (skip) ID detection for DAT with subcodes
• The built-in VCO can receive at speeds up to twice fs only when operating from a 5-V power supply.
• Miniature package: SSOP-24


Pinout

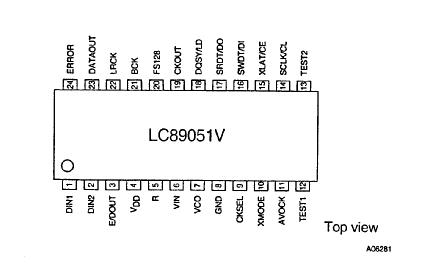

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Supply voltage VDD   0.3 to +7.0 V
I/O voltages VI, VO   0.3 to VDD + 0.3 V
I/O current II, IO   ±20 mA
Operating temperature Topr   30 to +75
Storage temperature Tstg   55 to +125



Description

The LC89051V is for use in IEC958 format data transmission between digital audio equipment. This LSI is used on the receiving side, and handles synchronization with the input signal and demodulation of that signal to a normal format signal.
