Purchase LC89080, In-stock LC89080 From SeekIC.
Part Number: LC89080
Description: The LC89080 and LC89080Q are high-speed currentoutput D/A converters. They feature 8-bit resolution, provide 3 channels...
- Table of contents:
LC89080
-
Suppliers
DataSheet
General Description
LC89080 General Description
The LC89080 and LC89080Q are high-speed currentoutput D/A converters. They feature 8-bit resolution, provide 3 channels on a single chip, and can be used in demodulators for high-speed signals such as video signals.
LC89080 Maximum Ratings
| Parameter | Symbol | Conditions | Ratings | Unit |
| Maximum supply voltage | VDD max | 0.3 to +7.0 | V | |
| Input voltage | VIN | 0.3 to VDD + 0.3 | V | |
| Operating temperature | Topr | 30 to +75 | ||
| Storage temperature | Tstg | 40 to +125 |
LC89080 Features
• Resolution: 8 bits
• D/A converters: Three current-output D/A converter channels on a single chip
• Maximum conversion speed: 30 MSPS
• Error: ±1.0 LSB (maximum)
• Power supply: +5 V single-voltage power supply
• Power dissipation: 330 mW
• Inputs: TTL compatible
• D/A converters: Three current-output D/A converter channels on a single chip
• Maximum conversion speed: 30 MSPS
• Error: ±1.0 LSB (maximum)
• Power supply: +5 V single-voltage power supply
• Power dissipation: 330 mW
• Inputs: TTL compatible

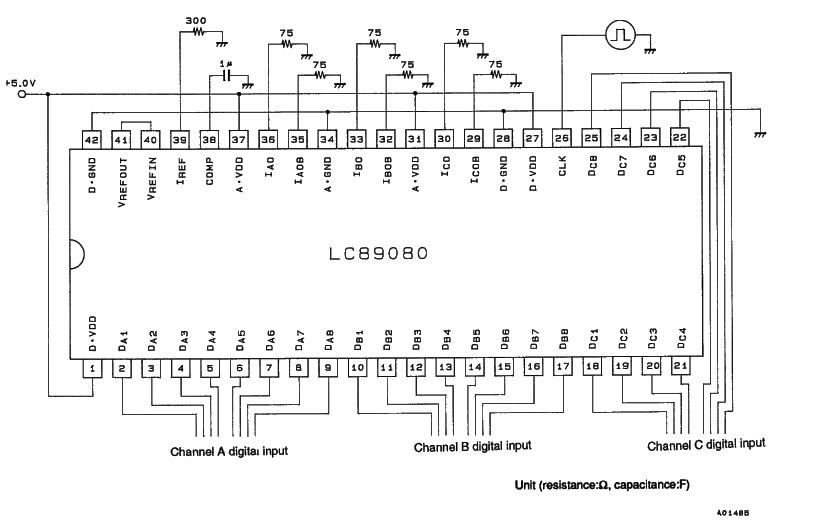

LC89080 Connection Diagram
LC89080
PDF/DataSheet Download
- Datasheet: LC89080
- File Size: 110100 KB
- Manufacturer: SANYO [Sanyo Semicon Device]
- Click here to Download
