Product Details

Description



Features:

• Accepts the channel R to W subcode data through a subcode interface.
• Can continuously output the channel R to W data for each 1PACK24 symbol.
• Performs error detection (cyclic redundancy code) and outputs both the data and the result of that check.
• Provides synchronization protection for the subcode interface.
• Supports low-voltage operation (3.3 V)
• Provided in the miniature MFP-14S package.

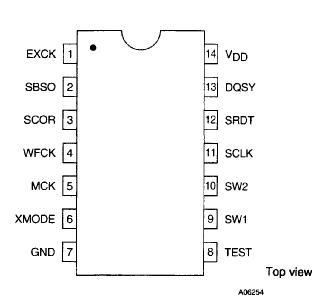

Pinout

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VDD max   0.3 to +7.0 V
I/O voltages VI VO   0.3 to VDD + 0.3 V
Input current II   ±10 mA
Operating temperature Topr   30 to +70
Storage temperature Tstg   55 to +125



Description

The LC89170M is an IC that decodes the text data, such as song names, stored in subcode channels R to W of a compact disk's read-in area.
