LC89585

Features:

• A/D converter clock generation
• Built-in DIR (conforming to the IEC958 standard) and DIT (Digital audio interface transmitter)
• Built-in fader and muting circuits
• On-chip buffer RAM for encoder processing
• Automatic linking position processing function
• CCB CPU interface

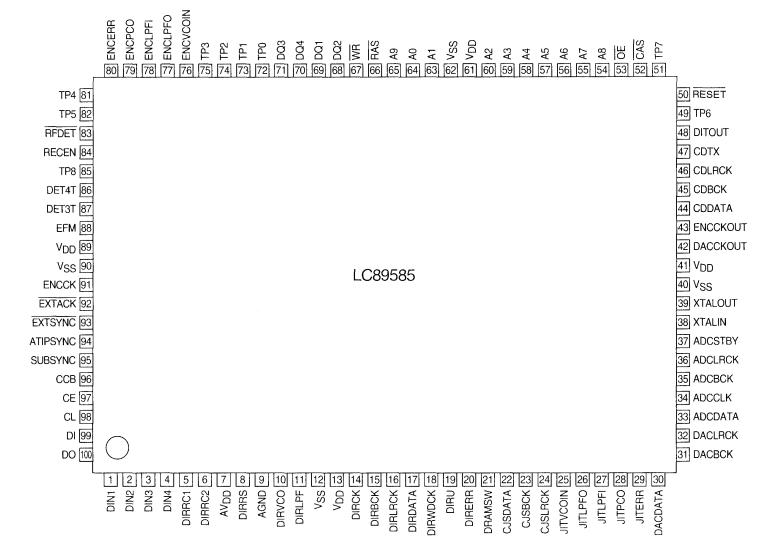

Pinout




Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	VDD max	Ta = 25	0.3 to 7.0	V
I/O voltages	VI, VO	Ta = 25	0.3 to VDD + 0.3	V
Operating temperature	Topr		30 to +70
Storage temperature	Tstg		55 to +125
Soldering temperature resistance		10 seconds (pins only)	260

Description

The LC89585 is an LSI that implements the digital processing required for CD-R recording in conformance with the orange book specifications. The LC89585 adds subcode data to record data processed by an A/D converter and the built-in DIR (digital audio interface
receiver), FS decoder, and CD decoder circuits, and converts that data to CIRC (cross-interleave reed-solomon code) data. The LC89585 then performs EFM (eight-tofourteen modulation encoding) conversion in real time.
