Product Details

Description



Features:

• 5 V single-voltage power supply
• On-chip 3*PLL circuit for 3fsc operation from an fsc (4.43 MHz) input
• Supports PAL/GBI and 4.43 NTSC systems, selected by a control pin input
• Includes an on-chip comb filter for chrominance signal crosstalk exclusion. This adjustment-free circuit provides high-precision comb characteristics.
• Peripheral circuits included on chip to allow operation with minimal external circuits.
• Positive-phase signal input, positive phase signal output (luminance signal)

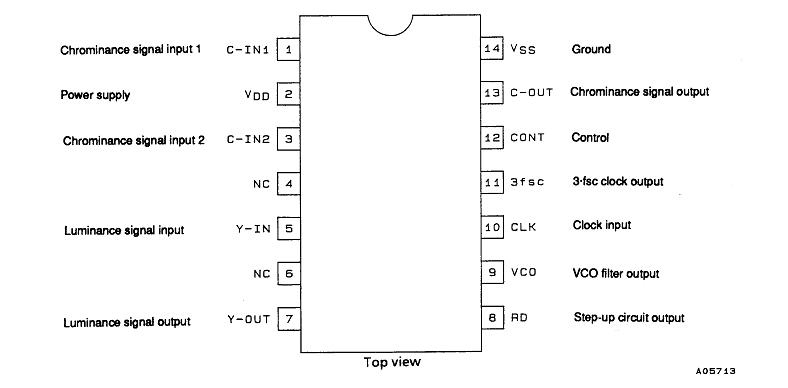

Pinout

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VDD max   0.3 to +6.0 V
Allowable power dissipation Pd max   250 mA
Operating temperature Topr   10 to +60
Storage temperature Tstg   55 to +150



Description

The LC89975M is a lower-cost PAL-Format CCD delay line based on the LC89970M, with the sizes of chip and package miniaturized and the external parts count reduced.
