Product Details

Description

Features:

• 5-V single-voltage power supply
• Built-in 4 ´ PLL frequency multiplier circuit allows 4fsc operation from an fsc (3.58 MHz) input.
• Can be switched between the NTSC/M, PAL/GBI, and PAL/M formats by setting control pin values.
• Includes a built-in crosstalk exclusion comb filter for the chrominance signal that provides high-precision comb characteristics in an adjustment-free circuit.
• Peripheral circuits provided on chip for operation with a minimum of external components.
• Positive-phase signal input, positive-phase signal output (luminance signal)

Pinout

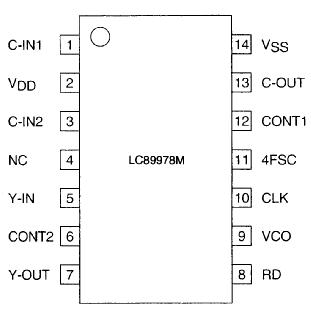

Connection Diagram

Specifications

Paramete	Symbol	Conditions	Ratings	Unit
Supply voltage	V_DD		0.3 to +6.0	V
Allowable power dissipation	Pd max		250	mW
Operating temperature	Topr		10 to +60
Storage temperature	Tstg		55 to +125

Description

The LC89978M is a CCD delay line for multi television system that incorporates a comb filter to remove noise from the chrominance signal and a 1-H delay line for the luminance signal.
