LGB480
-
Suppliers
DataSheet
General Description
LGB480 Maximum Ratings
| Bezeichnung Parameter |
Symbol Symbol |
Werte Values |
Einheit Unit |
| Betriebstemperatur Operating temperature range |
Top | 55 . + 100 | |
| Lagertemperatur Storage temperature range |
Tstg | 55 . + 100 | |
| Sperrschichttemperatur Junction temperature |
Tj | + 100 | |
| Durchlaßstrom Forward current |
IF | 40 | mA |
| Stoßstrom Surge current t 10 s, D = 0.005 |
IFM | 0.5 | A |
| Sperrspannung Reverse voltage |
VR | 5 | V |
| Verlustleistung Power dissipation TA 25 |
Ptot | 140 | mW |
| Wärmewiderstand Thermal resistance Sperrschicht / Luft Junction / air |
R th JA | 400 | K/W |
LGB480 Features
· colored, partly diffused package
· for use as optical indicator in frontpanel
· solder leads without stand-off
· Bargraph displays
· available taped on reel
· load dump resistance acc. to DIN 40839
· for use as optical indicator in frontpanel
· solder leads without stand-off
· Bargraph displays
· available taped on reel
· load dump resistance acc. to DIN 40839
LGB480-EH
PDF/DataSheet Download
- Datasheet: LGB480-EH
- File Size: 439848 KB
- Manufacturer: SIEMENS [Siemens Semiconductor Group]
- Click here to Download
- ·LGB480-F
- SIEMENS [Siemens Semiconductor Group]
- RECTANGULAR LED LAMP
- 96988 KB
- ·LGB480-G
- SIEMENS [Siemens Semiconductor Group]
- Symbol LED 5 mm x 2.5 mm, Partly Diffused
- 439848 KB
- ·LGB480-GK
- SIEMENS [Siemens Semiconductor Group]
- RECTANGULAR LED LAMP
- 96988 KB
- ·LGB480-H
- SIEMENS [Siemens Semiconductor Group]
- RECTANGULAR LED LAMP
- 96988 KB
LGB480 Relative Products
LGA20C
The LGA20C is a 20A module from the new LGA C product family which is a series of non-isolated board-mount power conversion modules aimed at providing high density and cost-effective power solutions in a low profile, surface mount land grid array package for...
LGA10C
The LGA10C is a 10A module from the new LGA C product family which is a series of non-isolated board-mount power conversion modules aimed at providing high density and cost-effective power solutions in a low profile, surface mount land grid array package for...
LGA06C
The LGA06C is a 6A module from the new LGA C product family which is a series of non-isolated board-mount power conversion modules aimed at providing high density and cost-effective power solutions in a low profile, surface mount land grid array package for ...
LGA03C
The LGA03C is a 3A module from the new LGA C product family which is a series of non-isolated board-mount power conversion modules aimed at providing high density and cost-effective power solutions in a low profile, surface mount land grid array package for ...
LG80030
·The LED lamps LG80030 are available with different colors, intensities, epoxy colors, etc.·Superior performance in outdoor environment.

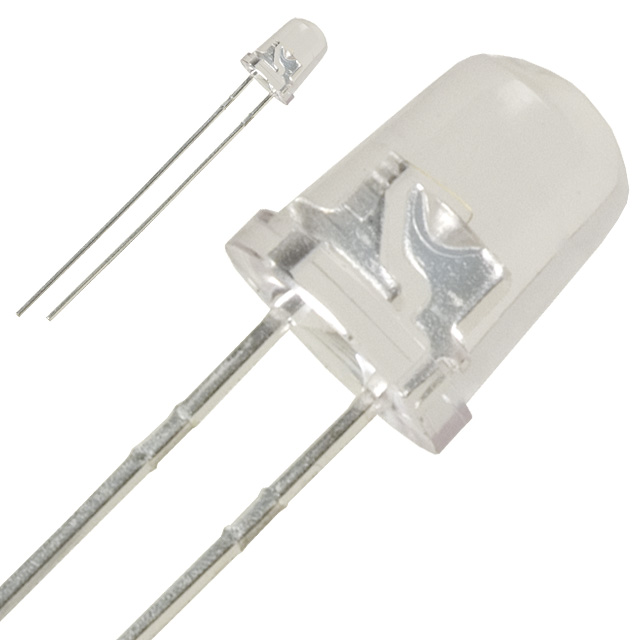

LG5804B
