Description: The LH52256C is a Static RAM organized as 32,768×8 bits which provides low-power standby mode. It is f...
- Table of contents:
LH52256C
-
Suppliers
DataSheet
General Description
LH52256C General Description
The LH52256C is a Static RAM organized as 32,768×8 bits which provides low-power standby mode. It is fabricated using silicon-gate CMOS process technology.
LH52256C Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT | NOTE |
| Supply voltage | VCC | -0.5 to +7.0 | V | 1 |
| Input voltage |
VIN |
0.5 to VCC + 0.5 | V | 1,2 |
| Operating temperature |
TOPR |
0 to +70 |
- | |
| Storage temperature | Tstg |
65 to +150 |
- |
NOTES:
1. The maximum applicable voltage on any pin with respect to GND.
2. Undershoot of -3.0 V is allowed width of pulse below 50 ns.
LH52256C Features
` 32,768 *8 bit organization
` Access time: 70 ns (MAX.)
` Supply current:
Operating: 45 mA (MAX.)
10 mA (MAX.) (tRC, tWC = 1 ms)
Standby: 40 mA (MAX.)
` Data retention current: 1.0 mA (MAX.)
(VCCDR = 3 V, TA = 25)
` Wide operating voltage range:
4.5 V ± 5.5 V
` Operating temperature:
Commerical temperature 0to +70
Industrial temperature -40° to +85
` Fully-static operation
` Three-state outputs
` Not designed or rated as radiation hardened
` Package:
28-pin, 600-mil DIP
28-pin, 450-mil SOP
28-pin, 300-mil SK-DIP
28-pin, 8*3 mm2 TSOP (Type I)
` N-type bulk silicon

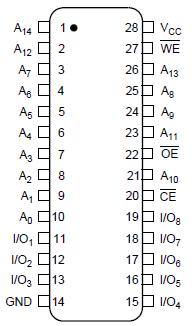

LH52256C Connection Diagram
