Description: The LH5268A is a static RAM organized as 8,192×8 bits. It is fabricated using silicon-gate CMOS proces...
- Table of contents:
LH5268A
-
Suppliers
DataSheet
General Description
LH5268A General Description
The LH5268A is a static RAM organized as 8,192×8 bits. It is fabricated using silicon-gate CMOS process technology.
LH5268A Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT | NOTE |
| Supply voltage | VCC | 0.3 to +7.0 | V | 1 |
| Input voltage | VIN | -0.3 to VCC + 0.3 | V | 1,2 |
| Operating temperature | Topr | 0 to +70 | ||
| Storage temperature | Tstg | 65 to +150 |
NOTES:
1. The maximum applicable voltage on any pin with respect to GND.
2. VIN (MIN.) = -3.0 V for pulse width 50 ns.
LH5268A Features
` 8,192*8 bit organization
` Access time: 100 ns (MAX.)
` Power consumption:
Operating:
220 mW (MAX.)
55 mW (MAX.) (tRC, tWC = 1 ms)
Standby:
220 mW (MAX.)
Data retention:
3.0 mW (VCC = 3 V, TA = 25)
` Fully-static operation
` Three-state outputs
` Single +5 V power supply
` TTL compatible I/O
` Packages:
28-pin, 600-mil DIP
28-pin, 300-mil SK-DIP
28-pin, 450-mil SOP

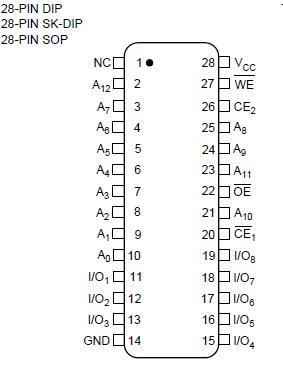

LH5268A Connection Diagram
LH5268A
PDF/DataSheet Download
- Datasheet: LH5268A
- File Size: 93291 KB
- Manufacturer: SHARP [Sharp Electrionic Components]
- Click here to Download
