Part Number: LH5324P00A
MFG: SHARP
D/C: 05+
Description: The LH5324P00A is a 24M-bit mask-programmable ROM organized as 3,145,728×8 bits (Byte mode) or 1,572,8...
- Table of contents:
LH5324P00A
-
Suppliers
DataSheet
General Description
LH5324P00A General Description
The LH5324P00A is a 24M-bit mask-programmable ROM organized as 3,145,728×8 bits (Byte mode) or 1,572,864×16 bits (Word mode) that can be selected by a BYTE input pin. It is fabricated using silicon-gate CMOS process technology.
LH5324P00A Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT |
| Supply voltage | Vcc | 0.3 to +7.0 | V |
| Input voltage |
VIN | 0.3 to VCC + 0.3 | V |
| Output voltage |
VOUT |
0.3 to VCC + 0.3 |
V |
| Operating temperature | Topr | 0 to +70 |
|
| Storage temperature | Tstg | 65 to +150 |
LH5324P00A Features
` 3,145,728 words* 8 bit organization
(Byte mode)
1,572,864 words *16 bit organization
(Word mode)
` Access time: 120 ns (MAX.)
` Power consumption:
Operating: 440 mW (MAX.)
Standby: 1650 W (MAX.)
` Static operation
` TTL compatible I/O
` Three-state outputs
` Single +5 V power supply
` Package: 44-pin, 600-mil SOP
(Byte mode)
1,572,864 words *16 bit organization
(Word mode)
` Access time: 120 ns (MAX.)
` Power consumption:
Operating: 440 mW (MAX.)
Standby: 1650 W (MAX.)
` Static operation
` TTL compatible I/O
` Three-state outputs
` Single +5 V power supply
` Package: 44-pin, 600-mil SOP

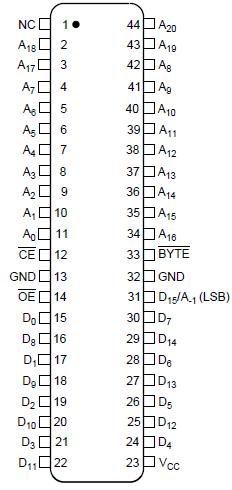

LH5324P00A Connection Diagram
