Purchase LH5PV16256, In-stock LH5PV16256 From SeekIC.
MFG:SHARP D/C:05+
Part Number: LH5PV16256
MFG: SHARP
D/C: 05+
Description: The LH5PV16256 is a 4M bit Pseudo-Static RAM with a 262,144 words ×16 bit organization.
- Table of contents:
LH5PV16256
-
Suppliers
DataSheet
General Description
LH5PV16256 General Description
The LH5PV16256 is a 4M bit Pseudo-Static RAM with a 262,144 words ×16 bit organization.
LH5PV16256 Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT | NOTE |
| Supply voltage | VT | -0.5 to +4.6 | V | 1 |
| Output short circuit current |
IO |
50 | mA | - |
| Power dissipation |
PD |
600 |
mW |
- |
| Operating temperature | TOPR | 0 to +70 |
- | |
| Storage temperature | Tstg | 65 to +150 | - |
NOTE:
1. The maximum applicable voltage on any pin with respect to GND.
LH5PV16256 Features
` 262,144 words *16 bit organization
` Power supply: +3.0 ± 0.15 V
` Access time: 120 ns (MAX.)
` Cycle time: 190 ns (MIN.)
` Power consumption (MAX.):
126 mW (Operating)
94.5 W (Standby = CMOS input level)
220.5 W
(Self-refresh = CMOS input level)
` LVTTL compatible I/O
` Available for address refresh, auto-refresh, and self-refresh modes
` 2,048 refresh cycles/32 ms
` Address non-multiple
` Available for byte write mode using UWE and LWE pins
` Package:
44-pin, TSOP (Type II)
` Process: Silicon-gate CMOS
` Operating temperature: 0 - 70
` Not designed or rated as radiation hardened

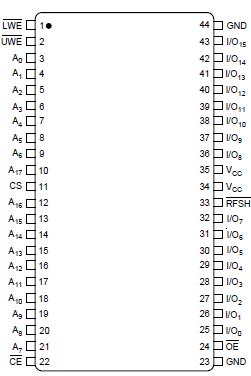

LH5PV16256 Connection Diagram
LH5PV16256
