Position: Home > Datasheet list > LM2 Series > Index L > LM2797MMX-1.8
Electronica China

Purchase LM2797MMX-1.8, In-stock LM2797MMX-1.8 From SeekIC.

MFG:National Semiconductor  Category:Integrated Circuits (ICs)

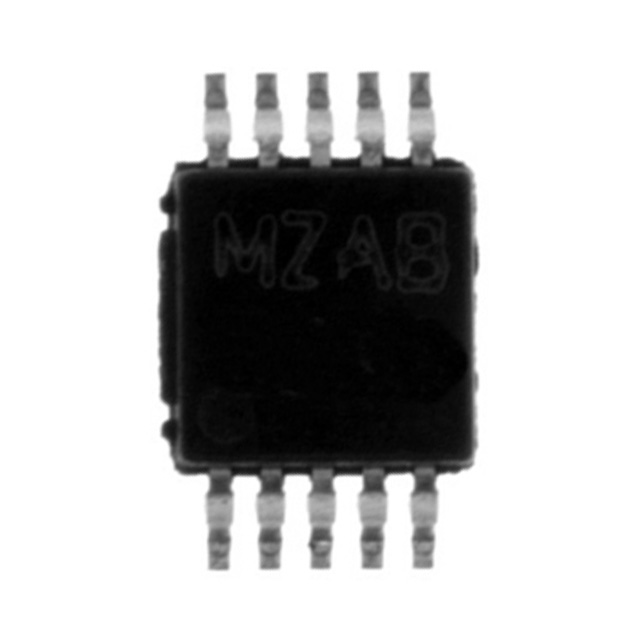

LM2797MMX-1.8 Product Image

LM2 Series Datasheet download

Five Points

Part Number: LM2797MMX-1.8

Category: Integrated Circuits (ICs)

MFG: National Semiconductor





Descriptions: IC CONVERTER DC/DC SW CAP 10MSOP

Price Break

3500

Unit Price

1.23500

Extended Price

4322.50

(All prices are in USD) Prices for reference only
Urgent Purchase

LM2797MMX-1.8 General Description

IC CONVERTER DC/DC SW CAP 10MSOP

LM2797MMX-1.8 Parameters

Technical/Catalog InformationLM2797MMX-1.8
VendorNational Semiconductor
CategoryIntegrated Circuits (ICs)
TypeSwitched Capacitor (Charge Pump), Step-Down (Buck)
Number of Outputs1
Voltage - Input2.6 ~ 5.5 V
Voltage - Output1.8V
Current - Output120mA
Power - Output-
Package / Case10-MSOP, Micro10?, 10-uMAX, 10-uSOP
PackagingTape & Reel (TR)
Internal Switch(s)Yes
SynchronousNo
Rds (On)-
Operating Temperature-40°C ~ 85°C
Frequency - Switching500kHz
Drawing Number14; MUB10A; ; 10
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LM2797MMX 1 8
LM2797MMX18

LM2797MMX-1.8 datasheet

LM2797MMX-1.8
PDF/DataSheet Download

  • Datasheet: LM2797MMX-1.8
  • File Size: 385345 KB
  • Manufacturer: NSC [National Semiconductor]
  • Click here to Download
