Description: The LM4250 and LM4250C are extremely versatile programmable monolithic operational amplifiers. A single external master...


Urgent Purchase

LM4250 General Description


The LM4250 and LM4250C are extremely versatile programmable monolithic operational amplifiers. A single external master bias current setting resistor programs the input bias current, input offset current, quiescent power consumption, slew rate, input noise, and the gain-bandwidth product. The device is a truly general purpose operational amplifier.

The LM4250C is identical to the LM4250 except that the LM4250C has its performance guaranteed over a 0°C to +70°C temperature range instead of the −55°C to +125°C temperature range of the LM4250.

LM4250 Maximum Ratings

  LM4250 LM4250C
Supply Voltage ±18V ±18V
Operating Temp. Range −55°C TA +125°C 0°C TA +70°C
Differential Input Voltage ±30V ±30V
Input Voltage (Note 2) ±15V ±15V
ISET Current 150 nA 150 nA
Output Short Circuit Duration Continuous Continuous
TJMAX
H-Package 150°C 100°C
N-Package   100°C
J-Package 150°C 100°C
M-Package   100°C
Power Dissipation at TA = 25°C
H-Package (Still Air) 500 mW 300 mW
(400 LF/Min Air Flow) 1200 mW 1200 mW
N-Package   500 mW
J-Package 1000 mW 600 mW
M-Package   350 mW
Thermal Resistance (Typical) JA
H-Package (Still Air) 165°C/W 165°C/W
(400 LF/Min Air Flow) 65°C/W 65°C/W
N-Package   130°C/W
J-Package 108°C/W 108°C/W
M-Package   190°C/W
(Typical) JC
H-Package 21°C/W 21°C/W
Storage Temperature Range −65°C to +150°C −65°C to +150°C
Soldering Information
Dual-In-Line Package
Soldering (10 seconds)		 260°C
Small Outline Package
Vapor Phase (60 seconds)		 215°C
Infrared (15 seconds) 220°C
See AN-450 "Surface Mounting Methods and Their Effect
on Product Reliability" for other methods of soldering
surface mount devices.
ESD tolerance (Note 4)		 800V

LM4250 Features

·±1V to ±18V power supply operation
·3 nA input offset current
·Standby power consumption as low as 500 nW
·No frequency compensation required
·Programmable electrical characteristics
·Offset voltage nulling capability
·Can be powered by two flashlight batteries
·Short circuit protection

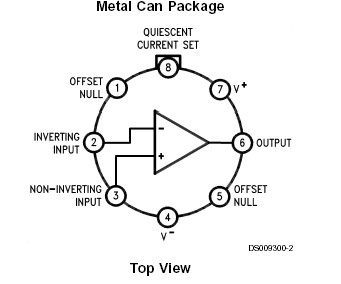

LM4250 Connection Diagram

LM4250 Connection Diagram
