LMC662 General Description
The LMC662 CMOS Dual operational amplifier is ideal for operation from a single supply. It operates from +5V to +15V and features rail-to-rail output swing in addition to an input common-mode range that includes ground. Performance limitations that have plagued CMOS amplifiers in the past are not a problem with this design. Input VOS, drift, and broadband noise as well as voltage gain into realistic loads (2 kW and 600W) are all equal to or better than widely accepted bipolar equivalents.
This chip is built with National's advanced Double-Poly Silicon-Gate CMOS process.

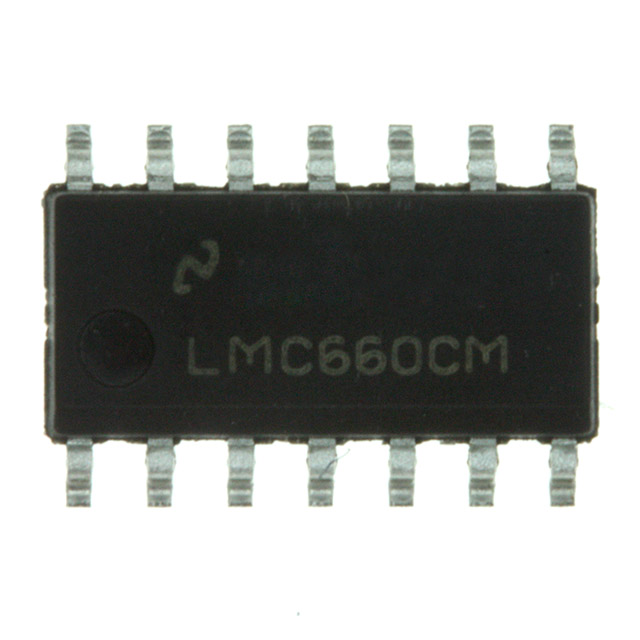

See the LMC660 datasheet for a Quad CMOS operational amplifier with these same features.
LMC662 Maximum Ratings
Differential Input Voltage.......................................... ±Supply Voltage
Supply Voltage (V+ − V−).............................................................. 16V
Output Short Circuit to V+ .....................................................(Note 12)
Output Short Circuit to V− .......................................................(Note 1)
Lead Temperature
(Soldering, 10 sec.) .............................................................260°C
Storage Temp. Range ............................................−65°C to +150°C
Voltage at Input/Output Pins........................... (V+) +0.3V, (V−) −0.3V
Current at Output Pin ..............................................................±18 mA
Current at Input Pin ...................................................................±5 mA
Current at Power Supply Pin .......................................................35 mA
Power Dissipation ....................................................................(Note 2)
Junction Temperature .................................................................150°C
ESD Tolerance (Note 8) ................................................................1000V
LMC662 Features
Rail-to-rail output swing
Specified for 2 kW and 600W loads
High voltage gain: 126 dB
Low input offset voltage: 3 mV
Low offset voltage drift: 1.3 V/°C
Ultra low input bias current: 2 fA
Input common-mode range includes V−
Operating range from +5V to +15V supply
ISS = 400 A/amplifier; independent of V+
Low distortion: 0.01% at 10 kHz
Slew rate: 1.1 V/s
Available in extended temperature range (−40°C to +125°C); ideal for automotive applications
Available to a Standard Military Drawing specification
LMC662 Typical Application
High-impedance buffer or preamplifier
Precision current-to-voltage converter
Long-term integrator
Sample-and-hold circuit
Peak detector
Medical instrumentation
Industrial controls
Automotive sensors

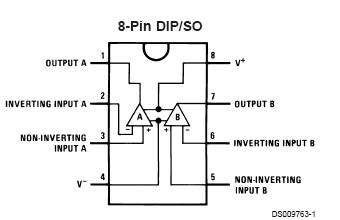

LMC662 Connection Diagram
