LTC1706-82

Features:

Fully Compliant with the Intel VRM 9.0 VID
    Specification
 Programs Regulator Output Voltage from 1.10V to
    1.85V in 25mV Steps
 Programs an Entire Family of Linear Technology
    DC/DC Converters
 ±0.25% Accurate Voltage Divider
 Built-In 40k Pull-Up Resistors on Program Inputs
 Available in MSOP-10 Packaging


Application

 Intel Pentium^®  III Processor Power Supply
 Multiprocessor Workstations and Servers
 Multiphase Processor Power Supply
 AMD Athlon^TM
    Processor Power Supply

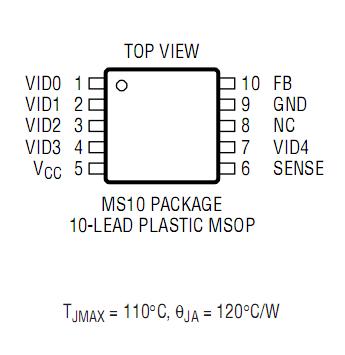

Pinout




Specifications

(Voltages Referred to GND Pin)
Input Supply Voltage (V_CC) .........................     0.3V to 7V
VID Input Pins .............................................     0.3V to 7V
SENSE Pin ...................................................      0.3V to 7V
FB Pin ..........................................................     0.3V to 7V
Operating Temperature Range (Note 2) .. 40°C to 85°C
Junction Temperature...........................................    110°C
Storage Temperature Range ................. 65°C to 150°C
Lead Temperature (Soldering, 10 sec) ..................   300°C


Description

The LTC^®1706-82 is a precision, digitally programmed,resistive ladder which adjusts the output of any 0.8V referenced regulator. Depending on the state of the five VID inputs, an output voltage between 1.10V and 1.85V is programmed in 25mV increments.

The LTC1706-82 is designed specifically to program an entire family of Linear Technology DC/DC converters in full compliance with the Intel Desktop VID specification.

The LTC1706-82 programs the following Linear Technology DC/DC converter products: LTC1622, LTC1628,LTC1629, LTC1702, LTC1735, LTC1735-1, LTC1772 and LTC1929.

Consult factory for future compatible DC/DC converter products.
