LU3X31T-T64

Features:

 Single-chip integrated physical layer and transceiver for 10Base-T and/or 100Base-T functions
 IEEE 802.3 compatible 10Base-T and 100Base-T physical layer interface and ANSI X3.263 TP-PMD compatible transceiver
  Built-in analog 10 Mbits/s receive filter, eliminating the need for external filters
  Built-in 10 Mbits/s transmit filter
  10 Mbits/s PLL exceeding tolerances for both preamble and data jitter
100 Mbits/s PLL, combined with the digital adaptive equalizer, robustly handles variations in risefall time, excessive attenuation due to channel loss, duty-cycle distortion, crosstalk, and baseline wander
 Transmit rise-fall time can be manipulated to provid ower emissions, amplitude fully compatible for proper interoperability
Programmable scrambler seed for better FCC compliancy
IEEE 802.3u Clause 28 compliant autonegotiation for full 10 Mbits/s and 100 Mbits/s control
Fully configurable via pins and management accesses
 Extended management support with interrupt capabilities
PHY MIB support
Symbol mode option
Low-power operation: <150 mA max
Low autonegotiation power: <30 mA
Very low powerdown mode: <5 mA
64-pin TQFP package (10 mm x 10 mm x 1.4 mm)100 Mbits/s PLL, combined with the digital adaptive equalizer, robustly handles variations in risefall time, excessive attenuation due to channel loss, duty-cycle distortion, crosstalk, and baseline wander
Transmit rise-fall time can be manipulated to provide lower emissions, amplitude fully compatible for proper interoperability
Programmable scrambler seed for better FCC compliancy
IEEE 802.3u Clause 28 compliant autonegotiation for full 10 Mbits/s and 100 Mbits/s control
Fully configurable via pins and management accesses
Extended management support with interrupt capabilities
PHY MIB support
Symbol mode option
Low-power operation: <150 mA max
Low autonegotiation power: <30 mA
Very low powerdown mode: <5 mA
64-pin TQFP package (10 mm x 10 mm x 1.4 mm)

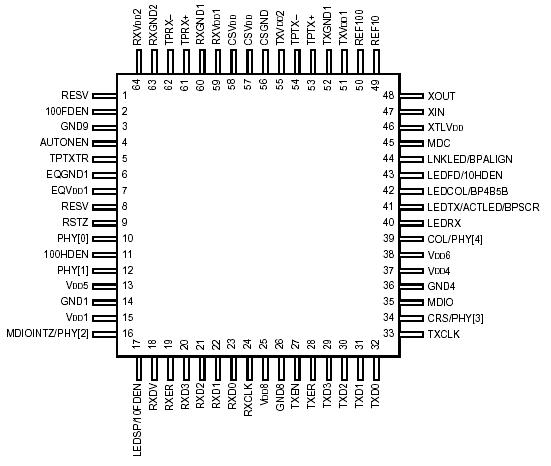

Pinout




Description

MII Isolate Mode. The LU3X31T-T64 implements an MII isolate mode that is controlled by bit 10 of the control
register (register 0h). The LU3X31T-T64 will set this bit to one if the PHY address is set to 00000 upon powerup/
hardware reset. Otherwise, the LU3X31T-T64 will initialize this bit to 0. Setting this bit to a 1 will put the
LU3X31T-T64 into isolate mode. The isolate mode can also be activated by setting the PHY address (bits 15 through 11 of register 19h) to 0 through the serial management interface, although the content of the isolate register is not affected by the modification of PHY address. The LU3X31T-T64 does not respond to packet data present at TXD[3:0], TXEN, and TXER inputs and presents a high impedance on the TXCLK, RXCLK, RXDV, RXER, RXD[3:0], COL, and CRS outputs. The LU3X31T-T64 will continue to respond to all management transactions.
