Part Number: M29W010B





Package Cooled: PLCC



Description: The M29W010B is a 1 Mbit (128Kb x8) non-volatile memory that can be read, erased and reprogrammed. These operations can...


Urgent Purchase

M29W010B General Description


The M29W010B is a 1 Mbit (128Kb x8) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single low voltage (2.7 to 3.6V) supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM.

M29W010B Maximum Ratings

Symbol Parameter Value Unit
TA Ambient Operating Temperature (Temperature Range Option 1) 0 to 70 °C
Ambient Operating Temperature (Temperature Range Option 6) 40 to 85 °C
TBIAS Temperature Under Bias 50 to 125 °C
TSTG Storage Temperature 65 to 150 °C
VIO (2) Input or Output Voltage 0.6 to 4 V
VCC Supply Voltage 0.6 to 4 V
VID Identification Voltage 0.6 to 13.5 V

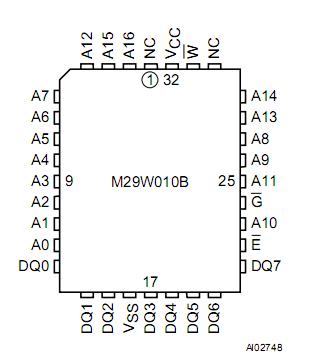

M29W010B Connection Diagram

M29W010B Connection Diagram

M29W010B datasheet

M29W010B
PDF/DataSheet Download

  • Datasheet: M29W010B
  • File Size: 160752 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
