Part Number: M30245
Description: The M30245 group is a 16-bit microcomputer based on the M16C family core technology that uses the igh ...
- Table of contents:
M30245
-
Suppliers
DataSheet
General Description
M30245 General Description
The M30245 group is a 16-bit microcomputer based on the M16C family core technology that uses the igh performance silicon gate CMOS process with an M16C/62 Series CPU core, and is packaged in a 00-pin, molded plastic QFP. They are single-chip USB peripheral microcontrollers meeting the niversal Serial Bus (USB) Version 1.1 specification. These microcontrollers operate using ophisticated instructions featuring a high level of instruction efficiency, making them capable of xecuting instructions at high speed.
M30245 Features
• Number of instructions ....................... 91
• Shortest instruction execution time ....83ns f(XIN)=12MHz, Vcc=3V with no wait
• USB Features:..................................... 5 endpoint pairs (IN/OUT)
3.25KFIFO
Integrated transceiver
• Frequency Synthesizer........................ PLL for 48MHz clock
• Memory capacity...................................64KROM/5KRAM
128KROM/ 10KRAM
128K Flash /10K RAM
• Supply Voltage ....................................3.0 to 3.6V (f(XIN)=12MHz)
• Interrupts............................................21internaland5external interrupt sources
4 software interrupt sources
7 levels (including key input interrupt X 8)
• Multifunction 16-bit timer .....................5 output timers+ 3 input timers
• UART................................................... 3X7/8/9,2X7/8/9/16/24/32bits;
Configurable for synchronous or asynchronous mode, I2S, I2C
• DMAC.................................................. 4 channels
• A-D Converter .....................................10 bits X 8 channels
• CRC calculation circuit ........................ 2 circuits with MSB/LSB selectable
• Watchdog timer ..................................1 line
• Key-on Wake up .................................8 inputs
• Programmable I/O...............................84 lines (TBD)
• Clock-generating circuit.......................2 built-in clock generation circuit
(built-in feedback resistor, and external ceramic or quartz oscillator)
M30245 Typical Application
USB peripherals, such as telephones, audio systems, office equipment, communications equipment, ortable equipment, scanners, and digital cameras.

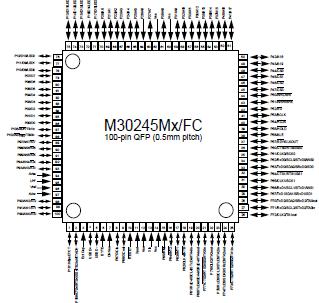

M30245 Connection Diagram
