Features:

·Minimum instruction execution time ................................ 0.75 ms
   (at 4.0 MHz oscillation frequency, in high-speed mode, VDD = 4.0 V to 5.5 V)
·Supply voltage
    Middle-speed mode
   ...... 2.5 V to 5.5 V (at 4.2 MHz oscillation frequency, for Mask ROM version and One Time PROM version)
   ...... 2.0 V to 5.5 V (at 3.0 MHz oscillation frequency, for Mask ROM version)
   (Operation voltage of A-D conversion: 2.7 V to 5.5 V)
    High-speed mode
   ...... 4.0 V to 5.5 V (at 4.2 MHz oscillation frequency, for Mask ROM version and One Time PROM version)
   ...... 2.5 V to 5.5 V (at 2.0 MHz oscillation frequency, for Mask ROM version and One Time PROM version)
   ...... 2.0 V to 5.5 V (at 1.5 MHz oscillation frequency, for Mask ROM version)
   (Operation voltage of A-D conversion: 2.7 V to 5.5 V)
·Timers
   Timer 1 ...................................... 8-bit timer with a reload register
   Timer 2 ...................................... 8-bit timer with a reload register
   Timer 3 ...................................... 8-bit timer with a reload register
   Timer 4 ...................................... 8-bit timer with a reload register
·Interrupt ........................................................................8 sources
·Serial I/O ...................................................................... 8 bit-wide
·A-D converter .................... 10-bit successive comparison method
·Voltage comparator ........................................................ 2 circuits
·Watchdog timer ................................................................. 16 bits
·Voltage drop detection circuit
·Clock generating circuit (ceramic resonator)
·LED drive directly enabled (port D)


Application

Microwave oven, rice cooker, audio, telephone, office equipment


Pinout

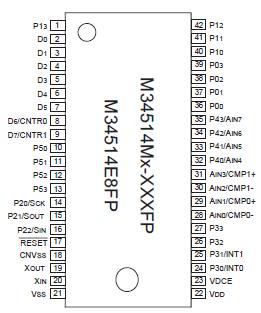

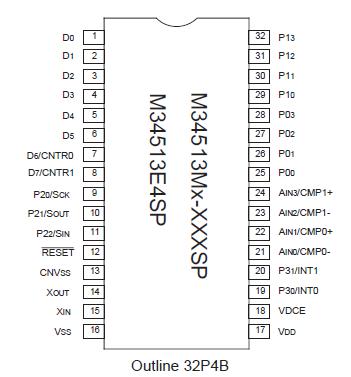

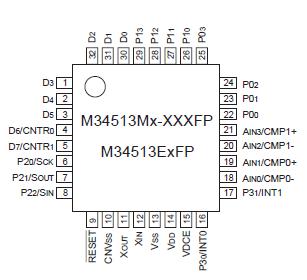

Connection Diagram  Connection Diagram  Connection Diagram


Specifications



Symbol
Parameter
Conditions
Ratings
Unit
VDD Supply voltage
0.3 to 7.0
V
VI Input voltage
P0, P1, P2, P3, P4, RESET , XIN, VDCE
0.3 to VDD+0.3
V
VI Input voltage D0D7
0.3 to 13
V
VI Input voltage AIN0AIN7
0.3 to VDD+0.3
V
VO Output voltage P0, P1, P3, P4, P5, RESET
0.3 to VDD+0.3
V
VO Output voltage D0D7 Output transistors in cut-off state
0.3 to 13
V
VO Output voltage XOUT
0.3 to VDD+0.3
V
Pd Power dissipation Ta = 25
Package: 42P2R
300
mW
Package: 32P6B
300
Package: 32P4B
1100
Topr Operating temperature range
-20 to 85
Tstg Storage temperature range
40 to 125



Description

The 4513/4514 Group is a 4-bit single-chip microcomputer designed with CMOS technology. Its CPU is that of the 4500 series using a simple, high-speed instruction set. The computer of 4513/4514 is equipped with serial I/O, four 8-bit timers (each timer has a reload register), and 10-bit A-D converter.
