General Description
M37211M2-XXXSP General Description
The M37210M3-XXXSP/FP is a single-chip microcomputer designed with CMOS silicon gate technology. It is housed in a 52-pin shrink plastic molded DIP or a 64-pin plastic molded QFP. This single-chip microcomputer is useful for the channel selection system for TVs because it provides PWM function, OSD display function and so on. In addition to their simple instruction sets, the ROM, RAM, and I/O addresses are placed on the same memory map to enable easy programming.
The features of the M37210E4-XXXSP/FP and the M37210E4SP/FP are similar to those of the M37210M4-XXXSP except that these chips have a built-in PROM which can be written electrically.
The differences between the M37210M3-XXXSP/FP, the M37210 M4-XXXSP, and the M37211M2-XXXSP are the ROM size, the RAM size, and the PWM outputs as shown below. Accordingly, the following descriptions will be for the M37210M3-XXXSP/FP unless otherwise noted.
M37211M2-XXXSP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit | |
| VCC | Power source voltage | All voltages are based on VSS. Output transistors are cut off. |
0.3 to 6 |
V | |
| VI | Input voltage CNVSS |
0.3 to 6 |
V | ||
| VI | Input voltage | P00 P07, P10 P17, P20 P27, P30 P35, P40 P42, HSYNC, VSYNC, RESET, OSC1, XIN |
0.3 to VCC+0.3 |
V | |
| VO | Output voltage | P10 P14, P20 P27, P30, P31, P40, P41, R, G, B, OUT, D-A, XOUT, OSC2 |
0.3 to VCC+0.3 |
V | |
| VO | Output voltage P60 P63, P00 P07 | . |
0.3 to 13 |
V | |
| IOLH | "H" average output current | R, G, B, OUT, P10 P14, P20 P23, P30, P31, D-A |
0 to 1 (Note 1) |
mA | |
| IOL1 | "L" average output current | R, G, B, OUT, P10 P14, P20 P23, P30, P31, P40, P41 D-A |
0 to 2 (Note 2) |
mA | |
| IOL2 | L" average output current P60 P63, P00 P07 |
0 to 1 (Note 2) |
mA | ||
| IOL3 | "L" average output current P24 P27 |
0 to 10 (Note 3) |
mA | ||
| Pd | Power dissipation | Ta = 25 |
600 |
mW | |
| Topr | Operating temperature |
20 to 85 |
| ||
| Tstg | Storage temperature |
40 to 125 |
| ||
M37211M2-XXXSP Features
• Number of basic instructions .................................................69
• Memory size ROM ................ 12 K bytes (M37210M3-XXXSP/FP)
16 K bytes (M37210M4-XXXSP)
8 K bytes (M37211M2-XXXSP)
RAM ................. 256 bytes (M37210M3-XXXSP/FP)
320 bytes (M37210M4-XXXSP)
192 bytes (M37211M2-XXXSP)
ROM for display............................................................. 3 K bytes
RAM for display .............................................................. 72 bytes
• The minimum instruction execution time
........................................... 0.5ms (at 8MHz oscillation frequency)
• Power source voltage ...................................................5V ± 10%
• Power dissipation .............................................................110mW
(at 4MHz oscillation frequency, VCC = 5.5V, at CRT display)
• Subroutine nesting ..............................................96 levels (Max.)
• Interrupts ....................................................12 types, 12 vectors
• 8-bit timers ............................................................................... 4
• Programmable I/O ports
(Ports P0, P1, P2, P3, P4) ....................................................... 25
• Output ports (ports P5, P6) ...................................................... 8
• Output ports (ports P52, P56) .................................................12
• 12 V withstand ports .................................................................4
• Serial I/O .......................................................... 8-bit 5 1 channel
• PWM output circuit ............... (14-bit ×1, 6-bit × 8) ... M37210M3
M37210M4
(14-bit ×1, 6-bit× 6) .... M37211M2
• A-D comparator (5-bit resolution) .............................. 5 channels
• CRT display function
Display characters ...................................18 characters ×2 lines
(16 lines max.)
Character kinds ..............................................................96 kinds
Dot structure ...........................................................12 ×16 dots
Character size ..................................................................3 kinds
Character color kinds (It can be specified by the character)
max. 7 kinds (R, G, B)
Raster color (max. 7 kinds)
Display layout
Horizontal ....................................................................64 levels
Vertical .......................................................................128 levels
Bordering (horizontal and vertical)
• Memory size ROM ................ 12 K bytes (M37210M3-XXXSP/FP)
16 K bytes (M37210M4-XXXSP)
8 K bytes (M37211M2-XXXSP)
RAM ................. 256 bytes (M37210M3-XXXSP/FP)
320 bytes (M37210M4-XXXSP)
192 bytes (M37211M2-XXXSP)
ROM for display............................................................. 3 K bytes
RAM for display .............................................................. 72 bytes
• The minimum instruction execution time
........................................... 0.5ms (at 8MHz oscillation frequency)
• Power source voltage ...................................................5V ± 10%
• Power dissipation .............................................................110mW
(at 4MHz oscillation frequency, VCC = 5.5V, at CRT display)
• Subroutine nesting ..............................................96 levels (Max.)
• Interrupts ....................................................12 types, 12 vectors
• 8-bit timers ............................................................................... 4
• Programmable I/O ports
(Ports P0, P1, P2, P3, P4) ....................................................... 25
• Output ports (ports P5, P6) ...................................................... 8
• Output ports (ports P52, P56) .................................................12
• 12 V withstand ports .................................................................4
• Serial I/O .......................................................... 8-bit 5 1 channel
• PWM output circuit ............... (14-bit ×1, 6-bit × 8) ... M37210M3
M37210M4
(14-bit ×1, 6-bit× 6) .... M37211M2
• A-D comparator (5-bit resolution) .............................. 5 channels
• CRT display function
Display characters ...................................18 characters ×2 lines
(16 lines max.)
Character kinds ..............................................................96 kinds
Dot structure ...........................................................12 ×16 dots
Character size ..................................................................3 kinds
Character color kinds (It can be specified by the character)
max. 7 kinds (R, G, B)
Raster color (max. 7 kinds)
Display layout
Horizontal ....................................................................64 levels
Vertical .......................................................................128 levels
Bordering (horizontal and vertical)
M37211M2-XXXSP Typical Application
TV

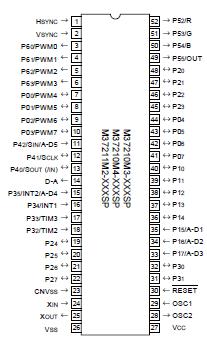

M37211M2-XXXSP Connection Diagram
