General Description
M37224M3-XXXSP General Description
The M37224M3-XXXSP is a single-chip microcomputer designed with CMOS silicon gate technology. They are housed in a 42-pin shrink plastic molded DIP.
In addition to their simple instruction sets, the ROM, RAM and I/O addresses are placed on the same memory map to enable easy programming.
The M37224M3-XXXSP has a PWM output function and a OSD display function, so it is useful for a channel selection system for TV.
M37224M3-XXXSP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
|
VCC, |
Power source voltageVCC |
All voltages are based on VSS. Output transistors are cut off. |
0.3 to 6 |
V |
|
VI |
Input voltage CNVSS |
0.3 to 6 |
V | |
|
VI |
Inputvoltage P00P07,P10P17,P20P27, P30P37, P40P42, OSC1, XIN, HSYNC, VSYNC, RESET |
0.3 to VCC + 0.3 |
V | |
|
VO |
P06, P07, P10P17, P20P27, P30P32, R, G, B, OUT, D-A, XOUT, OSC2 |
0.3 to VCC + 0.3 |
V | |
|
VO |
Output voltage P00P05 |
0.3 to 13 |
V | |
|
IOH |
Circuit current R, G, B, OUT, P10P17, P20P27, P30, P31, D-A |
0 to 1 (See note 1) |
mA | |
|
IOL1 |
Circuit current R, G, B, OUT, P06, P07, P10P17, P20P23, P30P32, D-A |
0 to 2 (See note 2) |
mA | |
|
IOL2 |
Circuit current P00P05 |
0 to 1 (Note 2) |
mA | |
|
IOL3 |
Circuit current P24P27 |
0 to 10 (Note 3) |
mA | |
|
Pd |
Power dissipation |
Ta = 25 |
550 |
mW |
|
Topr |
Operating temperature |
10 to 70 |
||
|
Tstg |
Storage temperature range |
40 to 125 |
M37224M3-XXXSP Features
• Number of basic instructions ..................................................... 71
• Memory size
ROM ....................................................... 12 K bytes
RAM .......................................................... 256 bytes
ROM for display ........................................ 8 K bytes
RAM for display .......................................... 96 bytes
• Minimum instruction execution time
............................... 0.5 µs (at 8 MHz oscillation frequency)
• Power source voltage................................................... 5 V ± 10 %
• Power dissipation ............................................................. 165 mW
(at 8 MHz oscillation frequency, VCC=5.5V, at CRT display)
• Subroutine nesting ....................................... 96 levels (maximum)
• Interrupts ....................................................... 13 types, 13 vectors
• 8-bit timers .................................................................................. 4
• Programmable I/O ports (Ports P0, P1, P2, P30P32) .............. 27
• Input ports (Ports P33, P34) ........................................................ 2
• Output ports (Ports P52P55) ...................................................... 4
• 12 V withstand ports .................................................................... 6
• LED drive ports ........................................................................... 4
• Serial I/O ............................................................ 8-bit * 1 channel
• A-D comparator (6-bit resolution) ................................. 6 channels
• D-A converter (6-bit resolution) ................................................... 2
• PWM output circuit ......................................... 14-bit * 1, 8-bit * 6
• ROM correction function ........................................... 32 bytes* 2
• CRT display function
Number of display characters ................ 20 characters * 2 lines
(16 lines maximum)
Kinds of characters ..................................................... 128 kinds
Dot structure ........................................................... 12 * 16 dots
Kinds of character sizes .................................................. 3 kinds
Kinds of character colors (It can be specified by the character)
maximum 7 kinds (R, G, B)
Kinds of raster colors (maximum 7 kinds)
Display position
Horizontal .................................................................. 64 levels
Vertical .................................................................... 128 levels
Bordering (horizontal and vertical)
• Memory size
ROM ....................................................... 12 K bytes
RAM .......................................................... 256 bytes
ROM for display ........................................ 8 K bytes
RAM for display .......................................... 96 bytes
• Minimum instruction execution time
............................... 0.5 µs (at 8 MHz oscillation frequency)
• Power source voltage................................................... 5 V ± 10 %
• Power dissipation ............................................................. 165 mW
(at 8 MHz oscillation frequency, VCC=5.5V, at CRT display)
• Subroutine nesting ....................................... 96 levels (maximum)
• Interrupts ....................................................... 13 types, 13 vectors
• 8-bit timers .................................................................................. 4
• Programmable I/O ports (Ports P0, P1, P2, P30P32) .............. 27
• Input ports (Ports P33, P34) ........................................................ 2
• Output ports (Ports P52P55) ...................................................... 4
• 12 V withstand ports .................................................................... 6
• LED drive ports ........................................................................... 4
• Serial I/O ............................................................ 8-bit * 1 channel
• A-D comparator (6-bit resolution) ................................. 6 channels
• D-A converter (6-bit resolution) ................................................... 2
• PWM output circuit ......................................... 14-bit * 1, 8-bit * 6
• ROM correction function ........................................... 32 bytes* 2
• CRT display function
Number of display characters ................ 20 characters * 2 lines
(16 lines maximum)
Kinds of characters ..................................................... 128 kinds
Dot structure ........................................................... 12 * 16 dots
Kinds of character sizes .................................................. 3 kinds
Kinds of character colors (It can be specified by the character)
maximum 7 kinds (R, G, B)
Kinds of raster colors (maximum 7 kinds)
Display position
Horizontal .................................................................. 64 levels
Vertical .................................................................... 128 levels
Bordering (horizontal and vertical)
M37224M3-XXXSP Typical Application
TV

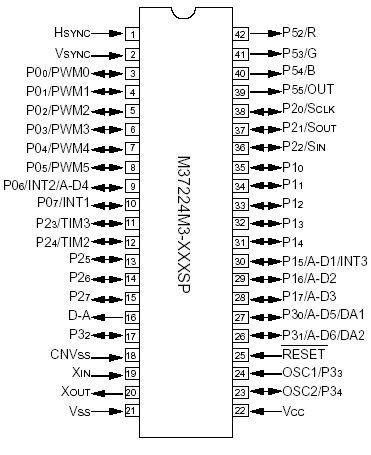

M37224M3-XXXSP Connection Diagram
M37224M3-XXXSP
PDF/DataSheet Download
- Datasheet: M37224M3-XXXSP
- File Size: 923025 KB
- Manufacturer: Mitsubishi
- Click here to Download
