Part Number: M37225ECSP

MFG: MIN

Package Cooled: DIP

Description: The M37225M6-XXXSP, M37225M8-XXXSP, and M37225ECSP are single-chip microcomputers designed with CMOS s...

M37225ECSP General Description

The M37225M6-XXXSP, M37225M8-XXXSP, and M37225ECSP are single-chip microcomputers designed with CMOS silicon gate technology. They have a OSD, I²C-BUS interface, PWM output, and 12 V withstand, so it is useful for a channel selection system for TV.

The features of the M37225ECSP are similar to those of the M37225M6-XXXSP except that the chip has a built-in PROM which can be written electrically. The difference between M37225M6-XXXSP and M37225M8-XXXSP are the ROM size. Accordingly, the following descriptions will be for the M37225M6-XXXSP.

M37225ECSP Maximum Ratings

Symbol	Parameter	Conditions	Ratings	Unit
V_CC, AV_CC	Power source voltageV_CC	All voltages are based on V_SS. Output transistors are cut off.	0.3 to 6	V
V_I	Input voltage CNV_SS		0.3 to 6	V
V_I	Input voltage P0₀P0₇, P1₀P1₇, P2₀P2₇, P3₀P3₅, OSC1, XIN, P5₀, P5₁, RESET		0.3 to V_CC + 0.3	V
V_O	Output voltage P0₆, P0₇, P1₀P1₇, P2₀P2₇, P3₀P3₂,P3₅, P5₂P5₅, XOUT, OSC2		0.3 to V_CC + 0.3	V
V_O	Output voltage P00P05		0.3 to 13	V
I_OH	Circuit current P5₂P5₅, P1₀P1₇, P2₀P2₇, P3₀, P3₁, P3₅		0 to 1 (See note 1)	mA
I_OL1	Circuit current P5₂P5₅, P0₆, P0₇, P1₀, P1₅P1₇, P2₀P2₃, P3₀P3₂, P3₅		0 to 2 (See note 2)	mA
I_OL2	Circuit current P1₁P1₄		0 to 6 (See note 2)	mA
IOL3	Circuit current P0₀P0₅		0 to 1 (See note 2)
I_OL4	Circuit current P2₄P2₇		0 to 10 (See note 3)	mA
P_d	Power dissipation	T_a = 25	550	mW
T_opr	Operating temperature		10 to 70
T_stg	Storage temperature range		40 to 125

M37225ECSP Features

`Number of basic instructions .................................................... 71
`Memory size
   ROM ..................... 24K bytes (M37225M6-XXXSP)
                                 32K bytes (M37225M8-XXXSP)
                                 48K bytes (M37225ECSP)
   RAM ...................... 1024 bytes (M37225M6-XXXSP, M37225M8-XXXSP)
                                  2048 bytes (M37225ECSP)
               (*ROM correction memory included)
`Minimum instruction execution time
......................................... 0.5 s (at 8 MHz oscillation frequency)
`Power source voltage ................................................. 5 V ± 10 %
`Subroutine nesting ............................................. 128 levels (Max.)
`Interrupts ....................................................... 16 types, 16 vectors
`8-bit timers .................................................................................. 4
`Programmable I/O ports (Ports P0, P1, P2, P30P32, P35) ..... 28
`Input ports (Ports P33, P34, P50, P51) ........................................ 4
`Output ports (Ports P52P55) ..................................................... 4
`12 V withstand ports ................................................................... 6
`LED drive ports ........................................................................... 4
`Serial I/O ............................................................ 8-bit * 1 channel
`Multi-master I2C-BUS interface .............................. 1 (2 systems)
`A-D converter (8-bit resolution) .................................... 8 channels
`PWM output circuit ........................................ 14-bit *2, 8-bit* 6
`Power dissipation
   In operating ...................................................................... 165 mW
   (at VCC = 5.5V, 8 MHz oscillation frequency, and OSD on)
`ROM correction function ................................................ 3 vectors
`Immediate return mode from wait state
`OSD function
   Display characters ............................................... 24 characters * 2 lines
            (It is possible to display 3 lines or more by software)
   Kinds of characters ......... 381 kinds
   Character display area 16 * 20 dots
   Kinds of character sizes .............................. Block display: 3 kinds
                                                                        SPRITE display: 1 kinds
   Kinds of character colors. ................................. 8 colors (R, G, B)
   Coloring unit ................... character, character background, raster
   Display position
   Horizontal: 64 levels Vertical :255 levels
   Attribute ........ Border (all-bordered, shadow-bordered), BUTTON
   SPRITE display function
   Wallpaper function
   Window function
   Corresponding to bi-scan mode

M37225ECSP Typical Application

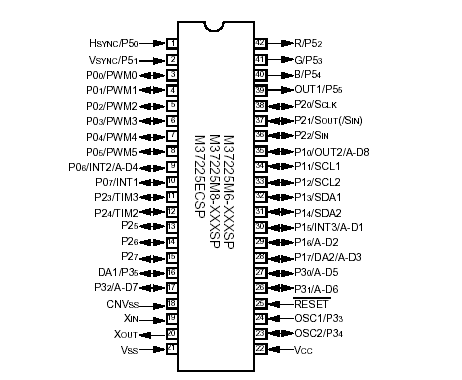

M37225ECSP Connection Diagram

M37225ECSP datasheet

M37225ECSP
PDF/DataSheet Download

Datasheet: M37225ECSP
File Size: 1649017 KB
Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
Click here to Download
