Part Number: M37274EFSP

MFG: MIN

Package Cooled: DIP

Description: The M3727EFSP is a single-chip microcomputer designed with CMOS silicon gate technology. It is housed ...

M37274EFSP General Description

The M3727EFSP is a single-chip microcomputer designed with CMOS silicon gate technology. It is housed in a 52-pin shrink plastic molded DIP.

In addition to their simple instruction sets, the ROM, RAM and I/O addresses are placed on the same memory map to enable easy programming.

The M3727EFSP has a OSD function and a data slicer function, so it is useful for a channel selection system for TV with a closed caption decoder.

M37274EFSP Maximum Ratings

Symbol	Parameter	Conditions	Ratings	Unit
V_CC, AV_CC	Power source voltageV_CC,AV_CC	All voltages are based on V_SS. Output transistors are cut off.	0.3 to 6	V
V_I	Input voltage CNV_SS		0.3 to 6	V
V_I	Input voltage P0₀P0₇, P1₀P1₇, P2₀P2₇, P3₀P3₅, P4₀P4₆, P6₄, P6₃, P7₀P7₂, XIN, HSYNC, VSYNC, RESET		0.3 to V_CC + 0.3	V
V_O	Output voltage P0₃, P1₀P1₇, P2₀P2₇, P3₀, P3₁, P5₂P5₅, SOUT, SCLK, XOUT, OSC2		0.3 to V_CC + 0.3	V
V_O	Output voltage P0₀P0₂, P0₄P0₇		0.3 to 13	V
I_OH	Circuit current P5₂P5₅, P1₀, P0₃, P1₅P1₇, P2₀P2₇, P3₀, P3₁		0 to 1 (See note 1)	mA
I_OL1	Circuit current P5₂P5₅, P1₀, , P0₃, P1₅P1₇, P2₀P2₇, SOUT, SCLK		0 to 2 (See note 2)	mA
I_OL2	Circuit current P1₁P1₄		0 to 6 (See note 2)	mA
IOL3	Circuit current P0₀P0₂, P0₄P0₇		0 to 1 (See note 2)
I_OL4	Circuit current P3₀, P3₁		0 to 10 (See note 3)	mA
P_d	Power dissipation	T_a = 25	550	mW
T_opr	Operating temperature		10 to 70
T_stg	Storage temperature range		40 to 125

M37274EFSP Features

• Number of basic instructions ..................................................... 71
• Memory size
            ROM ....................................................... 60 K bytes
            RAM ........................................................1024 bytes
            ROM correction memory ............................. 64 bytes
            ROM for OSD ....................................... 11072 bytes
            RAM for OSD .......................................... 1920 bytes
• Minimum instruction execution time
.............................................. 0.5 µs (at 8 MHz oscillation frequency)
• Power source voltage ................................................... 5 V ± 10 %
• Subroutine nesting ............................................. 128 levels (Max.)
• Interrupts ....................................................... 18 types, 16 vectors
• 8-bit timers .................................................................................. 6
• Programmable I/O ports (Ports P0, P1, P2, P30, P31) .............. 26
• Input ports (Ports P4₀P4₆, P6₃, P6₄, P7₀P7₂) ...................... 12
• Output ports (Ports P5₂P5₅) ...................................................... 4
• 12 V withstand ports .................................................................... 7
• LED drive ports ........................................................................... 2
• Serial I/O ............................................................ 8-bit *1 channel
• Multi-master I²C-BUS interface ................................ 1 (2 systems)
• A-D converter (8-bit resolution) .................................... 6 channels
• PWM output circuit ......................................... 14-bit *1, 8-bit * 7
• Power dissipation
   In high-speed mode .......................................................... 165mW
             (at V_CC = 5.5V, 8MHz oscillation frequency, CRT on, and Data slicer on)
   In low-speed mode ........................................................... 0.33mW
            (at V_CC = 5.5V, 32kHz oscillation frequency)
• Data slicer
• ROM correction function
• OSD function
   Display characters ............................... 40 characters 5 16 lines
   Kinds of characters ..................................................... 256 kinds
           (In EXOSD mode, they can be combined with 16 kinds of extra fonts)
   Character display area ........................ CC mode : 16 * 26 dots
                                                                 OSD mode : 16 * 20 dots
                                                                 EXOSD mode : 16 * 26 dots
   Kinds of character sizes ............................... CC mode : 2 types
                                                                         OSD mode : 14 types
                                                                         EXOSD mode : 6 types
   Kinds of character background colors
                                               CC mode : 7 kinds (a character unit)
                                               OSD mode : 7 kinds (a character unit)
                                               EXOSD mode : 5 kinds (a character unit)
   It can be specified by a screen unit (maximum 7 kinds).
   Extra font coloring, raster coloring, border coloring
   Kinds of character colors ............... CC mode : 7 kinds (R, G, B)
                                                          OSD mode : 7 kinds (R, G, B)
                                                          EXOSD mode : 5 kinds (R, G, B)
   Display position
   Horizontal ................................................................ 256 levels
   Vertical .................................................................. 1024 levels
   Attribute ...................... CC mode : smooth italic, underline, flash
                                         OSD mode : border
                                         EXOSD mode : border, extra font (16 kinds)
   Automatic solid space function
   Window function
   Dual layer OSD function

M37274EFSP Typical Application

TV with a closed caption decoder

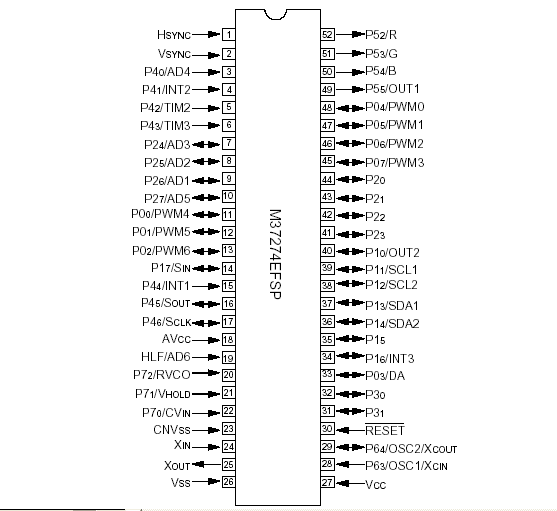

M37274EFSP Connection Diagram
