MFG:MIT Package Cooled:DIP
MFG: MIT
Package Cooled: DIP
Description: The M37280MFXXXSP and M37280MK-XXXSP are single-chip microcomputers designed with CMOS silicon gate te...

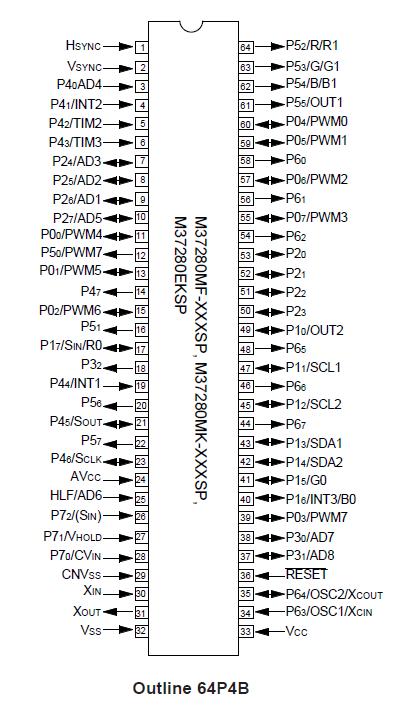

The M37280MFXXXSP and M37280MK-XXXSP are single-chip microcomputers designed with CMOS silicon gate technology. They have a OSD function and a data slicer function, so it is useful for a channel selection system for TV with a closed caption decoder. The feautures of the M37280EKSP is similar to those of the M37280MK-XXXSP except that the chip has a built-in PROM which can be written electrically. The difference between M37280MK-XXXSP and M37280MF-XXXSP are the ROM size and RAM size. Accordingly, the following descriptions will be for the M37280MK-XXXSP.
lNumber of basic instructions .................................................... 71
lMemory size
ROM ..................... ... 60K bytes (M37280MF-XXXSP)
0K bytes (M37280MK-XXXSP, M37280EKSP)
RAM ........................ 1024 bytes (M37280MF-XXXSP)
1472 bytes (M37280MK-XXXSP,M37280EKSP)
ROM correction memory ................................ 64 bytes
lMinimum instruction execution time
......................................... 0.5 ms (at 8 MHz oscillation frequency)
lPower source voltage ..................................................... 5 V ± 10 %
lSubroutine nesting ................................................ 128 levels (Max.)
lInterrupts ......................................................... 19 types, 16 vectors
l8-bit timers .................................................................................... 6
lProgrammable I/O ports (Ports P0, P1, P2, P30, P31) ................... 26
lInput ports (Ports P40P46, P63, P64, P70P72) ....................... 12
lOutput ports (Ports P32, P47, P5, P60P62, P65P67) .............. 16
l12 V withstand ports ...................................................................... 8
lLED drive ports ............................................................................... 2
lSerial I/O ................................................................ 8-bit 5 1 channel
lMulti-master I2C-BUS interface .................................... 1 (2 systems)
lA-D converter (8-bit resolution) .........................................8 channels
lPWM output circuit ................................................................ 8-bit 5 8
lPower dissipation
In high-speed mode ................................................................165 mW
(at VCC = 5.5V, 8 MHz oscillation frequency, CRT on, and Dataslicer on)
In low-speed mode ............................................................... 0.33 mW
(at VCC = 5.5V, 32 kHz oscillation frequency)
lROM correction function
lClosed caption data slicer
lOSD function
Display characters .... 32 characters 5 16 lines + RAM font (1 character)
(CC/OSD mode)(CDOSD mode)(RAM font)
Kinds of characters ................................ 510 kinds + 62 kinds + 1 kind
(Coloring unit) (a character) (a dot) (a dot)
Triple layer function ..............................................................................2
layers selected from CC/CDOSD/OSD mode + RAM font layer
Character display area ....................... CC/CDOSD mode: 16 5 26 dots
OSD mode/RAM font: 16 5 20 dots
Kinds of character sizes ............................... CC mode/RAM font: 4 kinds
OSD/CDOSD mode: 14 kinds
Kinds of character colors ....................................................................64
colors (4 adjustment levels for each R, G, B)
Coloring unit ................... dot, character, character background, raster
Blanking output OUT1, OUT2
Display position
Horizontal: 256 levels Vertical :1024 levels
(RAM font can be set independently)
Attribute ...........................................................................................CC
mode: smooth italic, underline, flash, automatic solid space
OSD mode: border, shadow
Window/Blank function
M37280EKSP
PDF/DataSheet Download
