Part Number: M38039FFLHP
Description: The 3803 group (Spec.L) is the 8-bit microcomputer based on the 740 family core technology.The 3803 group (Spec...
- Table of contents:
M38039FFLHP
-
Suppliers
DataSheet
General Description
M38039FFLHP General Description
The 3803 group (Spec.L) is the 8-bit microcomputer based on the 740 family core technology.
The 3803 group (Spec.L) is designed for household products, office automation equipment, and controlling systems that require analog signal processing, including the A/D converter and D/A converters.
M38039FFLHP Maximum Ratings
| Symbol |
Parameter | Conditions | Ratings | Unit |
| VCC | Power source voltages | All voltages are based on VSS. When an input voltage is measured, output transistors are cut off. |
−0.3 to 6.5 | V |
| VI | Input voltage P00-P07, P10-P17, P20-P27, P30, P31, P34-P37, P40-P47, P50-P57, P60-P67, VREF |
−0.3 to VCC + 0.3 | V | |
| VI | Input voltage P32, P33 | −0.3 to 5.8 | ||
| VI | Input voltage RESET, XIN | −0.3 to VCC + 0.3 | V | |
| VI | Input voltage CNVSS | −0.3 to VCC + 0.3 | V | |
| VO | Output voltage P00-P07, P10-P17, P20-P27, P30, P31, P34-P37, P40-P47, P50-P57, P60-P67, XOUT |
−0.3 to VCC + 0.3 | V | |
| VO | Output voltage P32, P33 | −0.3 to 5.8 | V | |
| Pd | Power dissipation | Ta=25 °C | 1000(1) | mW |
| Topr | Operating temperature | - | −20 to 85 | °C |
| Tstg | Storage temperature | - | −65 to 125 | °C |
1. This value is 300 mW except SP package.
M38039FFLHP Features
• Basic machine-language instructions ................................. 71
• Minimum instruction execution time .......................... 0.24 s (at 16.8 MHz oscillation frequency)
• Memory size
Mask ROM/Flash memory .................................... 60 K bytes
RAM ...................................................................... 2048 bytes
• Programmable input/output ports ....................................... 56
• Software pull-up resistors ............................................ Built-in
• Interrupts 21 sources, 16 vectors............................................................... (external 8, internal 12, software 1)
• Timers ...................................................................... 16-bit * 1
8-bit * 4 (with 8-bit prescaler)
• Serial interface .........8-bit * 2 (UART or Clock-synchronized)
8-bit * 1 (Clock-synchronized)
• PWM ....................................... 8-bit * 1 (with 8-bit prescaler)
• A/D converter ........................................ 10-bit * 16 channels (8-bit reading enabled)
• D/A converter ............................................ 8-bit * 2 channels
• Watchdog timer ...................................................... 16-bit * 1
• LED direct drive port..............................................................8
• Clock generating circuit ............................. Built-in 2 circuits (connect to external ceramic resonator or quartz-crystal oscillator)
• Power source voltage (Mask ROM version)
[In high-speed mode]
At 16.8 MHz oscillation frequency ....................4.5 to 5.5 V
At 12.5 MHz oscillation frequency ....................4.0 to 5.5 V
At 8.4 MHz oscillation frequency ......................2.7 to 5.5 V
At 4.2 MHz oscillation frequency ......................2.2 to 5.5 V
At 2.1 MHz oscillation frequency ......................2.0 to 5.5 V
[In middle-speed mode]
At 16.8 MHz oscillation frequency ....................4.5 to 5.5 V
At 12.5 MHz oscillation frequency ....................2.7 to 5.5 V
At 8.4 MHz oscillation frequency ......................2.2 to 5.5 V
At 6.3 MHz oscillation frequency ......................1.8 to 5.5 V
[In low-speed mode]
At 32 kHz oscillation frequency.........................1.8 to 5.5 V
• Power source voltage (Flash memory version)
[In high-speed mode]
At 16.8 MHz oscillation frequency.................... 4.5 to 5.5 V
At 12.5 MHz oscillation frequency.................... 4.0 to 5.5 V
At 8.4 MHz oscillation frequency...................... 2.7 to 5.5 V
[In middle-speed mode]
At 16.8 MHz oscillation frequency.................... 4.5 to 5.5 V
At 12.5 MHz oscillation frequency.................... 2.7 to 5.5 V
[In low-speed mode]
At 32 kHz oscillation frequency......................... 2.7 to 5.5 V
• Power dissipation (Mask ROM version)
In high-speed mode ........................................... 40 mW (typ.) (at 16.8 MHz oscillation frequency, at 5 V power source voltage)
In low-speed mode ............................................ 45 W (typ.) (at 32 kHz oscillation frequency, at 3 V power source voltage)
• Power dissipation (Flash memory version)
In high-speed mode ........................................ 27.5 mW (typ.) (at 16.8 MHz oscillation frequency, at 5 V power source voltage)
In low-speed mode ........................................ 1200 W (typ.) (at 32 kHz oscillation frequency, at 3 V power source voltage)
• Operating temperature range ............................. −20 to 85 °C
• Packages
SP...............PRDP0064BA-A (64P4B) (64-pin 750 mil SDIP)
HP ......PLQP0064KB-A (64P6Q-A) (64-pin 10 * 10 mm LQFP)
KP ......PLQP0064GA-A (64P6U-A) (64-pin 14 * 14 mm LQFP)
WG ........PTLG0064JA-A (64F0G) (64-pin 6 * 6 mm FLGA)
• Minimum instruction execution time .......................... 0.24 s (at 16.8 MHz oscillation frequency)
• Memory size
Mask ROM/Flash memory .................................... 60 K bytes
RAM ...................................................................... 2048 bytes
• Programmable input/output ports ....................................... 56
• Software pull-up resistors ............................................ Built-in
• Interrupts 21 sources, 16 vectors............................................................... (external 8, internal 12, software 1)
• Timers ...................................................................... 16-bit * 1
8-bit * 4 (with 8-bit prescaler)
• Serial interface .........8-bit * 2 (UART or Clock-synchronized)
8-bit * 1 (Clock-synchronized)
• PWM ....................................... 8-bit * 1 (with 8-bit prescaler)
• A/D converter ........................................ 10-bit * 16 channels (8-bit reading enabled)
• D/A converter ............................................ 8-bit * 2 channels
• Watchdog timer ...................................................... 16-bit * 1
• LED direct drive port..............................................................8
• Clock generating circuit ............................. Built-in 2 circuits (connect to external ceramic resonator or quartz-crystal oscillator)
• Power source voltage (Mask ROM version)
[In high-speed mode]
At 16.8 MHz oscillation frequency ....................4.5 to 5.5 V
At 12.5 MHz oscillation frequency ....................4.0 to 5.5 V
At 8.4 MHz oscillation frequency ......................2.7 to 5.5 V
At 4.2 MHz oscillation frequency ......................2.2 to 5.5 V
At 2.1 MHz oscillation frequency ......................2.0 to 5.5 V
[In middle-speed mode]
At 16.8 MHz oscillation frequency ....................4.5 to 5.5 V
At 12.5 MHz oscillation frequency ....................2.7 to 5.5 V
At 8.4 MHz oscillation frequency ......................2.2 to 5.5 V
At 6.3 MHz oscillation frequency ......................1.8 to 5.5 V
[In low-speed mode]
At 32 kHz oscillation frequency.........................1.8 to 5.5 V
• Power source voltage (Flash memory version)
[In high-speed mode]
At 16.8 MHz oscillation frequency.................... 4.5 to 5.5 V
At 12.5 MHz oscillation frequency.................... 4.0 to 5.5 V
At 8.4 MHz oscillation frequency...................... 2.7 to 5.5 V
[In middle-speed mode]
At 16.8 MHz oscillation frequency.................... 4.5 to 5.5 V
At 12.5 MHz oscillation frequency.................... 2.7 to 5.5 V
[In low-speed mode]
At 32 kHz oscillation frequency......................... 2.7 to 5.5 V
• Power dissipation (Mask ROM version)
In high-speed mode ........................................... 40 mW (typ.) (at 16.8 MHz oscillation frequency, at 5 V power source voltage)
In low-speed mode ............................................ 45 W (typ.) (at 32 kHz oscillation frequency, at 3 V power source voltage)
• Power dissipation (Flash memory version)
In high-speed mode ........................................ 27.5 mW (typ.) (at 16.8 MHz oscillation frequency, at 5 V power source voltage)
In low-speed mode ........................................ 1200 W (typ.) (at 32 kHz oscillation frequency, at 3 V power source voltage)
• Operating temperature range ............................. −20 to 85 °C
• Packages
SP...............PRDP0064BA-A (64P4B) (64-pin 750 mil SDIP)
HP ......PLQP0064KB-A (64P6Q-A) (64-pin 10 * 10 mm LQFP)
KP ......PLQP0064GA-A (64P6U-A) (64-pin 14 * 14 mm LQFP)
WG ........PTLG0064JA-A (64F0G) (64-pin 6 * 6 mm FLGA)

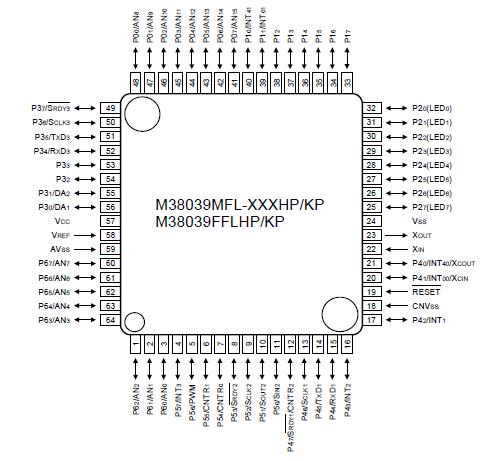

M38039FFLHP Connection Diagram
