Part Number: M44C510



MFG: TFK

Package Cooled: DIP



Description: The M44C510 is a member of the TEMIC family of 4-bit single-chip microcontrollers. It contains ROM, RAM, up o 32 digita...


Urgent Purchase

M44C510 General Description


The M44C510 is a member of the TEMIC family of 4-bit single-chip microcontrollers. It contains ROM, RAM, up o 32 digital I/O pins, up to 10 maskable external interrupt sources, 6 maskable internal interrupts, a watchdog timer, 2-kHz oscillator with programmable watch timer, 2 x 8-bit multifunction timer/counter module and a versatile n-chip system clock generation module.

M44C510 Maximum Ratings

Parameters Symbol Value Unit
Supply voltage VDD -0.3 to +6.5 V
Input voltage(on any pin) VIN VSS -0.3VINVDD +0.3 V
Output short circuit duration tshort indefinite sec
Operating temperature range Tamb -40 to +85
Storage temperature range Tstg -40 to +130
Thermal resistance(DIP40) RthJA 110 K/W
Soldering temperature(t10s) Tsld 260
Stresses greater than those listed under absolute maximum ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at any condition above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating condition for an extended period may affect device reliability. All inputs and outputs are protected against high electrostatic voltages or electric fields. However, precautions to minimize build-up of electrostatic charges during handling are recommended. Reliability of operation is enhanced if unused inputs are connected to an appropriate logic voltage level (e.g., VDD).

M44C510 Features

4 K x 8-bit application ROM
256 x 4-bit RAM
8 hardware and software interrupt priority levels
Bitwise maskable prioritized interrupts
Up to 10 external and 4 internal interrupts
Up to 32 I/O lines
High drive ports (20 mA, VDD = 5 V)
I/O ports bitwise configurable with combined interrupt andling (for serial I/O applications)
2 x 8-bit multifunction timer/counters
32-kHz on chip oscillator with programmable rescaler/interval timer
User definable on-chip system clock generation
4-MHz crystal, 4-MHz ceramic resonator or fully ntegrated RC oscillator **

(** mask option)

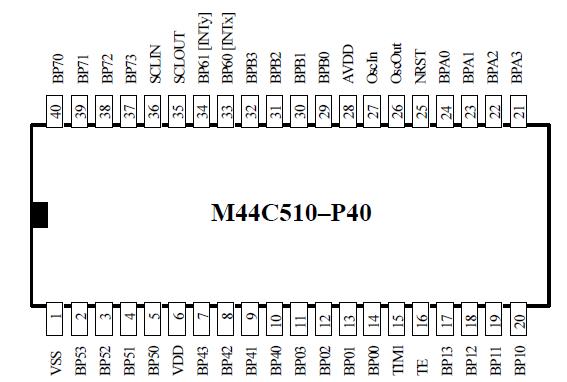

M44C510 Connection Diagram

M44C510 Connection Diagram

M44C510 datasheet

M44C510
PDF/DataSheet Download
