Part Number: M48Z30









Description: The M48Z30/30Y 32K x 8 ZEROPOWER®RAM is a non-volatile 262,144 bit Static RAM organized...


Urgent Purchase

M48Z30 General Description


The M48Z30/30Y 32K x 8 ZEROPOWER®RAM is a non-volatile 262,144 bit Static RAM organizedas 32,768 words by 8 bits. The device combines an internal lithium battery and a full CMOS SRAM in a plastic 28 pin DIP Module. The ZEROPOWER

M48Z30 Maximum Ratings

Symbol
Parameter
Value
Unit
TA
 Ambient Operating Temperature
0 to 70
°C
TSTG
 Storage Temperature (VCC Off)
40 to 70
°C
TBIAS
 Temperature Under Bias
10 to 70
°C
TSLD
 Lead Solder Temperature for 10 seconds
260
°C
VIO
 Input or Output Voltages
0.3 to 7
V
VCC
 Supply Voltage
0.3 to 7
V

M48Z30 Features

INTEGRATED LOW POWER SRAM, POWER-FAIL CONTROL CIRCUIT and BATTERY
CONVENTIONAL SRAM OPERATION; UNLIMITED WRITE CYCLES
10 YEARS of DATA RETENTION in the ABSENCEof POWER
PIN and FUNCTION COMPATIBLE with JEDEC STANDARD 32K x 8 SRAMs
AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION
CHOICE of TWO WRITE PROTECT VOLTAGES:
    M48Z30: 4.5V VPFD 4.75V
    M48Z30Y: 4.2V VPFD 4.50V
BATTERY INTERNALLY ISOLATEDUNTIL POWER IS APPLIED

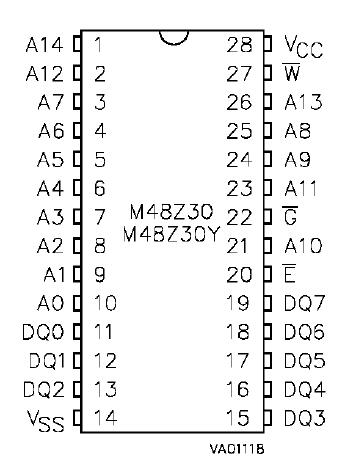

M48Z30 Connection Diagram

M48Z30 Connection Diagram

M48Z30 datasheet

M48Z30
PDF/DataSheet Download

  • Datasheet: M48Z30
  • File Size: 102563 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
