Part Number: M48Z32V









Description: The M48Z32V ZEROPOWER® RAM is a 32 Kbit x 8, non-volatile static RAM that integrates po...


Urgent Purchase

M48Z32V General Description


The M48Z32V ZEROPOWER® RAM is a 32 Kbit x 8, non-volatile static RAM that integrates powerfail deselect circuitry and battery control logic on a single die.

The 44-pin, 330mil SOIC provides a battery pin for an external, user-supplied battery. This is all that is required to fully non-volatize the SRAM.

M48Z32V Maximum Ratings

Symbol
Parameter
Value
Unit
TA
 Ambient Operating Temperature Grade 1
0 to 70
°C
Grade 6
40 to 85
°C
TSTG
 Storage Temperature (VCC Off, Oscillator Off) SOIC
55 to 125
°C
TSLD(1)
 Lead Solder Temperature for 10 seconds
260
°C
VIO
 Input or Output Voltages
0.3 to VCC + 0.3
V
VCC
 Supply Voltage
0.3 to 4.6
V
IO
 Output Current
20
mA
PD
 Power Dissipation
1
W

M48Z32V Features

INTEGRATED, ULTRA LOW POWER SRAM, and POWER-FAIL CONTROL CIRCUIT
READ CYCLE TIME EQUALS WRITE CYCLE TIME
AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION
WRITE PROTECT VOLTAGES: (VPFD = Power-fail Deselect Voltage)
    -M48Z32V: 2.7V VPFD3.0V
ULTRA-LOW STANDBY CURRENT

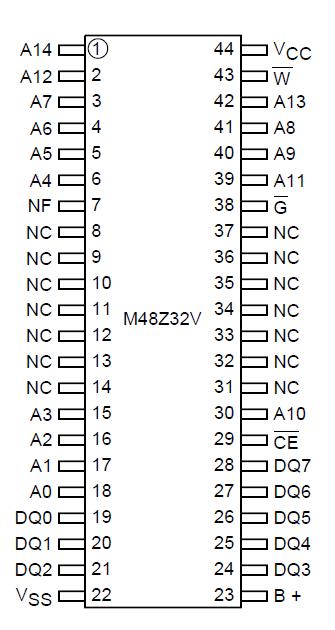

M48Z32V Connection Diagram

M48Z32V Connection Diagram

M48Z32V datasheet

M48Z32V
PDF/DataSheet Download

  • Datasheet: M48Z32V
  • File Size: 106099 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
