Purchase M54522FP, In-stock M54522FP From SeekIC.
MFG:MIT
Part Number: M54522FP
MFG: MIT
Description: M54522P and M54522FP are eight-circuit Darlington transistor arrays with clamping diodes. The circuits...
- Table of contents:
M54522FP
-
Suppliers
DataSheet
General Description
M54522FP General Description
M54522P and M54522FP are eight-circuit Darlington transistor arrays with clamping diodes. The circuits are made of
NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
M54522FP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| VCEO | Clamping-emitter voltage | Ourrent,H |
-0.5to+40 |
V |
| Ic | Collector current | Ourrent per circuit ouptput ,L |
400 |
mA |
| VI | Input voltage |
-0.5to+40 |
V | |
| IF | Clamping diode forward current |
500 |
mA | |
| VR | Clamping diode reverse voltage |
40 |
V | |
| Pd | Power dissipation | Ta = 25°C, when mounted on board |
1.79(P)/1.10(FP) |
W |
| Topr | Operating temperature |
-20to+75 |
°C | |
| Tstg | Storage temperature |
-55to+125 |
M54522FP Features
` High breakdown voltage (BVCEO40V)
` High-current driving (Ic(max) = 400mA)
` With clamping diodes
` Driving available with PMOS IC output
` Wide operating temperature range (Ta = 20 to +75°C)
` High-current driving (Ic(max) = 400mA)
` With clamping diodes
` Driving available with PMOS IC output
` Wide operating temperature range (Ta = 20 to +75°C)
M54522FP Typical Application
Drives of relays and printers, digit drives of indication elements(LEDs and lamps), and interfaces between microcomputer output and high-current or high-voltage systems

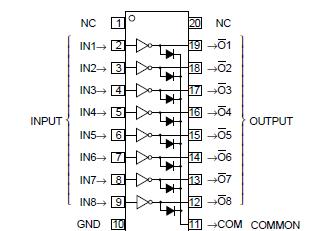

M54522FP Connection Diagram
M54522FP
PDF/DataSheet Download
- Datasheet: M54522FP
- File Size: 115447 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
