Description: The M54640P is a semiconductor IC to drive a stepper motor by the bipolar method.


Urgent Purchase

M54640P General Description


The M54640P is a semiconductor IC to drive a stepper motor by the bipolar method.

M54640P Maximum Ratings

Symbol
Parameter
Conditions
Ratings
Unit
VCC
 Supply voltage


-0.3 7
V
VMM
 Output supply voltage


-0.3 45
V
VL
 Logic input voltage


-0.3 6
V
VC
 Analog input voltage


-0.3 VCC
V
VR
 Comparative input voltage


-0.3 15
V
IL
 Logic input current


-10
mA
IC
 Analog input current


-10
mA
IMM
 Output supply current
±1000
mA
Pd
 Power dissipation

Mounted on a board
1.92
W
Topr
 Operating temperature


-20 75
°C
Tstg
 Storage temperature


-55 125
°C
Note. Every voltage value is measured when the voltage at GND pin is 0V. The maximum and the minimum of each voltage value are shown in absolute values. Regarding current directions, inflow current is shown in a positive value and outflow current is shown in a negative value. The maximum and the minimum of each current value are shown in absolute values.

M54640P Features

` Bipolar and constant-current drive
`Wide current control rage (20 800mA)
` Wide supply voltage drive range (10 40V)
`Built in flywheel diodes
`Current level can be changed by steps or continuously.
`Built in a thermal shutdown circuit

M54640P Typical Application

Printer, FDD, HDD, Fax

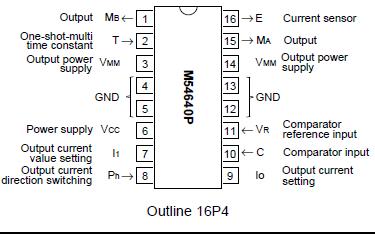

M54640P Connection Diagram

M54640P Connection Diagram
