Part Number: M54641FP



MFG: MIT

Package Cooled: 97

D/C: SOP-8

Description: The M54641 is a semiconductor integrated circuit that is capable of directly driving a smallsize bi-directional motor r...


Urgent Purchase

M54641FP General Description


The M54641 is a semiconductor integrated circuit that is capable of directly driving a smallsize bi-directional motor rotating in both forward and reverse directions.

M54641FP Maximum Ratings

Symbol Parameter Conditions
Ratings
Unit
VCC
 Supply voltage
-0.5 +12
V
VCC'
 Output Supply voltage
-0.5 +20
V
VI
 Input voltage VI<VCC
0 VCC
V
VO
 Output voltage
-0.5 VCC'+2.5
V
IO (max)
 Allowable motor rush current top=10ms : Repetitive cycle 0.2Hzor less
±800
mA
IO
Continuous output current
±150
mA
Pd
 Power dissipation Ta = 60°C(M54641L)
570
mW
Tj
 Junction temperature
100
°C
Topr
 Operating temperature
-10 60
°C
Tstg
 Storage temperature
-55 125
°C

M54641FP Features

` Wide range of operating voltage (VCC = 4 10V,VCC'(max) = 20V)
` Low output saturation voltage in stationary motor circuit (large voltage across motors)
` Built-in clamp diode
`Provided with output voltage control pin (VZ)
`Built-in thermal shutdown circuit (Tj(shut) = 120°C standard)

M54641FP Typical Application

Sound equipment such as tape deck and radio cassette, and VTR

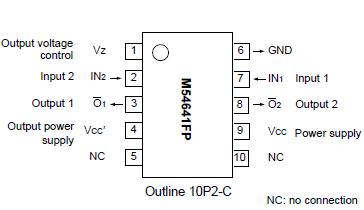

M54641FP Connection Diagram

M54641FP Connection Diagram

M54641FP datasheet

M54641FP
PDF/DataSheet Download

  • Datasheet: M54641FP
  • File Size: 81438 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
