M54672SP General Description


The M54672SP is a semiconductor IC to drive a stepper motor directly by controlling the coil current with the constant current method.

M54672SP Maximum Ratings

Symbol
Parameter
Conditions
Ratings
Unit
VCC
 Supply voltage

-0.3 7
V
VMM
 Output supply voltage

-0.3 24
V
Vbs
 Bootstrap supply voltage
-0.3 27
V
VL
 Logic input voltage

-0.3 6
V
VC
 Analog input voltage

-0.3 VCC
V
VR
 Comparative input voltage

-0.3 15
V
IL
 Logic input current

-10
mA
IC
 Analog input current

-10
mA
IMM
 Output supply current


±1500
mA
Pd
 Power dissipation


1.70
W
Topr
 Operating temperature

-20 75
°C
Tstg
 Storage temperature

-55 125
°C

M54672SP Features

`Wide output current control range (20 1200mA)
`Bipolar and constant current drive
`Built in a thermal shutdown circuit
`Built in flywheel diodes

M54672SP Typical Application

Office automation equipment such as printer, FDD, HDD and FAX

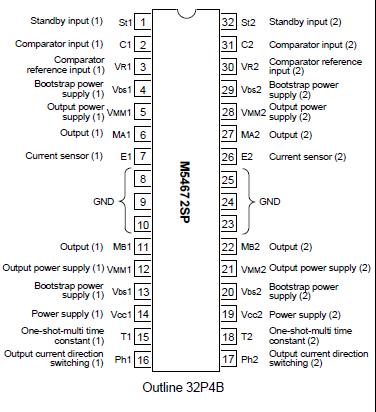

M54672SP Connection Diagram

M54672SP Connection Diagram

M54672SP datasheet

M54672SP
PDF/DataSheet Download

  • Datasheet: M54672SP
  • File Size: 106700 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
